100549571 Seagate PCB Circuit Board

DATARECOVERYUNION.COM08 mins

HDD Printed circuit board (PCB) with board number 100549571 is usually used on these Seagate hard disk drives:

  • ST3600057SS, 6SL, SUZHSG, PN 9FN066-035, FW HPD6, HP 600GB SAS 3.5″ Hard Drive;
  • ST3300657SS, 6SJ, SUZHSG, PN 9FL066-009, FW 000B, Seagate 300GB SAS 3.5″ Hard Drive;
  • ST3600057SS, 6SL, PN 9FN066-150, FW ES64, Dell 600GB SAS 3.5″ Hard Drive;
  • ST3300657SS, 6SJ, PN 9FL066-039, FW BA58, IBM 300GB SAS 3.5″ Hard Drive;
  • ST3450857SS, 6SK, SUZHSG, PN 9FM066-003, FW 0006, Seagate 450GB SAS 3.5″ Hard Drive;
  • ST3450857SS, 6SK, PN 9FM066-035, FW HPD6, Hitachi 450GB SAS 3.5″ Hard Drive;
  • ST3450857SS, 3SK, AMKSPR, PN 9FM066-881, FW 000B, Seagate 450GB SAS 3.5″ Hard Drive;
  • ST3450857SS, 6SK, SUZHSG, PN 9FM066-038, FW NA00, Seagate 450GB SAS 3.5″ Hard Drive;
  • ST3600057SS, 6SL, SUZHSG, PN 9FN066-031, FW ES0F, Seagate 600GB SAS 3.5″ Hard Drive;
  • ST3300657SS, 6SJ, PN 9FL066-048, FW EH02, Dell 300GB SAS 3.5″ Hard Drive;
  • ST3300657SS, 6SJ, PN 9FL066-035, FW HPD6, HP 300GB SAS 3.5″ Hard Drive;
  • ST3450857SS, 6SK, CN, PN 9FM066-032, FW HPS1, HP 450GB SAS 3.5″ Hard Drive;
  • ST3300657SS, 6SJ, PN 9FL066-042, FW 1713, Seagate 300GB SAS 3.5″ Hard Drive;
  • ST3300657SS, 3SJ, PN 9FL066-035, FW HPD2, HP 300GB SAS 3.5″ Hard Drive;
  • ST3300657SS, 6SJ, SUZHSG, PN 9FL066-008, FW 0008, Seagate 300GB SAS 3.5″ Hard Drive;
  • ST3450802SS, 3SR, AMKSPR, PN 9FR066-057, FW ED06, Dell 450GB SAS 3.5″ Hard Drive;
  • ST3600057SS, 3SL, SG, PN 9FN066-150, FW ES64, Dell 600GB SAS 3.5″ Hard Drive;
  • ST3300657SS, 6SJ, PN 9FL066-032, FW HPS1, HP 300GB SAS 3.5″ Hard Drive;
  • ST3600057SS, 6SL, SUZHSG, PN 9FN066-003, FW 0006, Seagate 600GB SAS 3.5″ Hard Drive;
  • ST3600057SS, 3SL, PN 9FN066-032, FW HPS0, HP 600GB SAS 3.5″ Hard Drive;
  • ST3450857SS, 6SK, AMKSPR, PN 9FM066-035, FW HPD6, HP 450GB SAS 3.5″ Hard Drive;
  • ST3300657SS, 6SJ, SUZHSG, PN 9FL066-150, FW ES66, Dell 300GB SAS 3.5″ Hard Drive;
  • ST3300657SS, 6SJ, CN, PN 9FL066-150, FW ES64, Dell 300GB SAS 3.5″ Hard Drive;
  • ST3300657SS, 6SJ, SUZHSG, PN 9FL066-003, FW 0006, Seagate 300GB SAS 3.5″ Hard Drive;
  • ST3600057SS, 6SL, SUZHSG, PN 9FN066-009, FW 000B, Seagate 600GB SAS 3.5″ Hard Drive;
  • ST3450857SS, 6SK, PN 9FM066-032, FW HPS1, HP 450GB SAS 3.5″ Hard Drive;
  • ST3600057SS, 6SL, SUZHSG, PN 9FN066-008, FW 0008, Seagate 600GB SAS 3.5″ Hard Drive;
  • ST3300657SS, 3SJ, PN 9FL066-150, FW ES62, Dell 300GB SAS 3.5″ Hard Drive;
  • ST3450857SS, 3SK, PN 9FM066-150, FW ES62, Dell 450GB SAS 3.5″ Hard Drive;
  • ST3600057SS, 3SL, AMKSPR, PN 9FN066-038, FW NA00, Seagate 600GB SAS 3.5″ Hard Drive;
  • ST3450857SS, 3SK, PN 9FM066-050, FW ES01, Dell 450GB SAS 3.5″ Hard Drive;
  • ST3450857SS, 6SK, SUZHSG, PN 9FM066-039, FW BA5A, IBM 450GB SAS 3.5″ Hard Drive;
  • ST3600057SS, 3SL, AMKSPR, PN 9FN066-008, FW 0008, Seagate 600GB SAS 3.5″ Hard Drive;
  • ST3600002SS, 3SS, AMKSPR, PN 9FS066-057, FW ED06, Dell 600GB SAS 3.5″ Hard Drive;
  • ST3300657SS, 3SJ, AMKSPR, PN 9FL066-003, FW 0006, Seagate 300GB SAS 3.5″ Hard Drive;
  • ST3300657SS, 6SJ, SUZHSG, PN 9FL066-150, FW ES65, Dell 300GB SAS 3.5″ Hard Drive;
  • ST3600057SS, 6SL, CN, PN 9FN066-150, FW ES65, Dell 600GB SAS 3.5″ Hard Drive;
  • ST3450857SS, 6SK, PN 9FM066-150, FW ES64, Dell 450GB SAS 3.5″ Hard Drive;
  • ST3300657SS, 6SJ, PN 9FL066-035, FW HPD5, HP 300GB SAS 3.5″ Hard Drive;
  • ST3300657SS, 6SJ, PN 9FL066-150, FW ES64, Dell 300GB SAS 3.5″ Hard Drive;
  • ST3600057SS, 6SL, SUZHSG, PN 9FN066-057, FW EN03, Dell 600GB SAS 3.5″ Hard Drive;
  • ST3600057SS, 3SL, PN 9FN066-035, FW HPD2, HP 600GB SAS 3.5″ Hard Drive;
  • ST3450857SS, 6SK, PN 9FM066-035, FW HPD6, HP 450GB SAS 3.5″ Hard Drive;
  • ST3300657SS, 3SJ, AMKSPR, PN 9FL066-002, FW 0005, Seagate 300GB SAS 3.5″ Hard Drive;
  • ST3600057SS, 3SL, SG, PN 9FN066-057, FW EN00, Dell 600GB SAS 3.5″ Hard Drive

The 100549571 Seagate PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.

100549571 Seagate PCB: Board Number

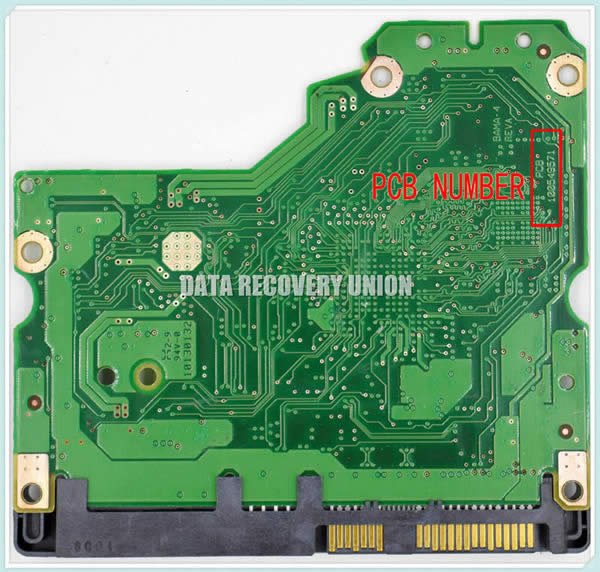

Finding a donor Seagate PCB board is easy, you just need to open the hard drive and find the board number like “100*** on the board. The following picture shows the board number of 100549571 Seagate PCB.

100549571 Seagate PCB Board Number

100549571 Seagate PCB: BIOS Chip

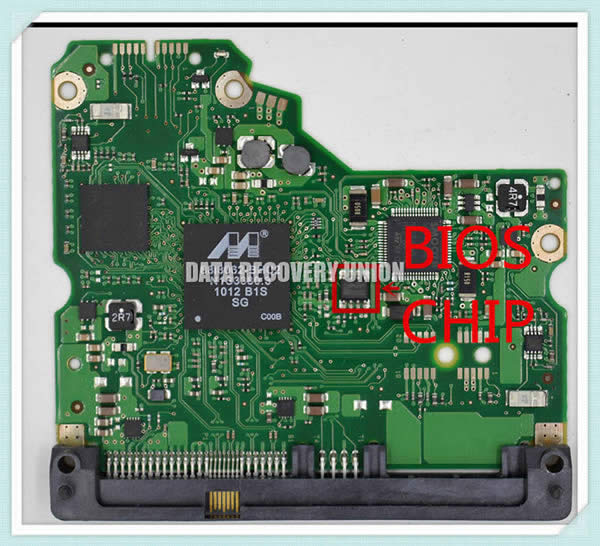

The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 100549571 Seagate PCB.

100549571 Seagate PCB BIOS Chip.

BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.

PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers

100549571 Seagate PCB: Repair Video

The following video from YOUTUBE shows the repair process of 100549571 Seagate PCB.

100549571 Seagate PCB: PCB Supplier

HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 100549571 on it, good luck!
