HDD Printed circuit board (PCB) with board number 100603204 is usually used on these Seagate hard disk drives:
- ST1500DL001, 5YD, WU, PN 9VT15L-568, FW CC92, Seagate 1.5TB SATA 3.5 Hard Drive;
- ST2000DL001, 5YD, WU, PN 9VT156-570, FW CC96, Seagate 2TB SATA 3.5 Hard Drive;
- ST1000DM000, 5YA, WU, PN 9TS15E-568, FW CC91, Seagate 1TB SATA 3.5 Hard Drive;
- ST2000DL001, 5YD, WU, PN 9VT156-569, FW CC96, Seagate 2TB SATA 3.5 Hard Drive
The 100603204 Seagate PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.
100603204 Seagate PCB: Board Number

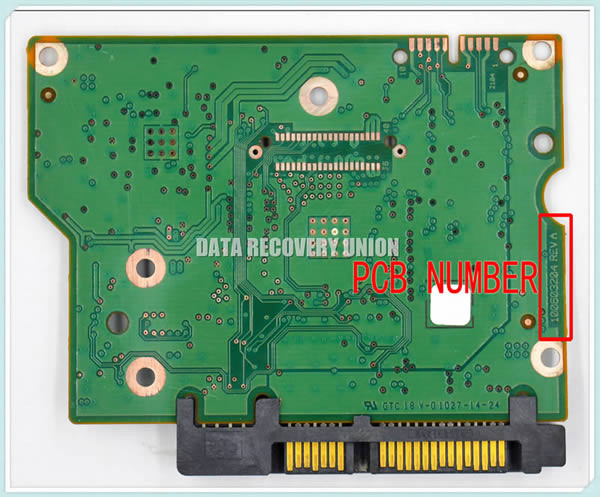

Finding a donor Seagate PCB board is easy, you just need to open the hard drive and find the board number like “100*** on the board. The following picture shows the board number of 100603204 Seagate PCB.
100603204 Seagate PCB: BIOS Chip

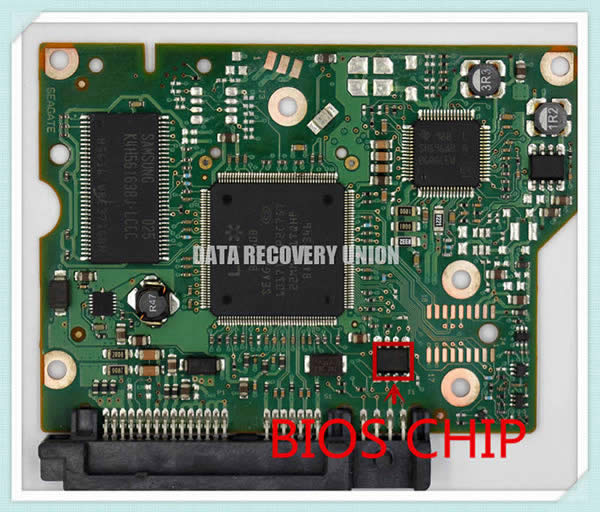

The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 100603204 Seagate PCB.
.
BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.
PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers
100603204 Seagate PCB: Repair Video
The following video from YOUTUBE shows the repair process of 100603204 Seagate PCB.
100603204 Seagate PCB: PCB Supplier
HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 100603204 on it, good luck!
