HDD Printed circuit board (PCB) with board number 2060-001003-001 is usually used on these Western Digital hard disk drives:
- WD200BB-60AUA1, DCM HRBBEGHB, Western Digital 20GB IDE 3.5 Hard Drive;
- WD200BB-00AUA1, DCM DRBBEGHH, Western Digital 20GB IDE 3.5 Hard Drive;
- WD300BB-00AUA1, DCM DSCBEGHB, Western Digital 30GB IDE 3.5 Hard Drive;
- WD400BB-53AUA1, DCM HSCHEGHH, Western Digital 40GB IDE 3.5 Hard Drive;
- WD300BB-00AUA1, DCM RSBAEGHA, Western Digital 30GB IDE 3.5 Hard Drive;
- WD200BB-75AUA1, DCM DSBHEGYH, Western Digital 20GB IDE 3.5 Hard Drive;
- WD200BB-00AUA1, DCM DSCAEGHH, Western Digital 20GB IDE 3.5 Hard Drive;
- WD150BB-60AUA1, DCM DRBHEGYH, Western Digital 15GB IDE 3.5 Hard Drive;
- WD400BB-00AUA1, DCM HSBAEGHA, Western Digital 40GB IDE 3.5 Hard Drive;
- WD200BB-75AUA1, DCM HSBHEGHH, Western Digital 20GB IDE 3.5 Hard Drive;
- WD400BB-00AUA1, DCM DSCAEGHB, Western Digital 40GB IDE 3.5 Hard Drive;
- WD400BB-75AUA1, DCM DSBHEGYH, Western Digital 40GB IDE 3.5 Hard Drive;
- WD400BB-53AUA1, DCM DSBBEGHH, Western Digital 40GB IDE 3.5 Hard Drive;
- WD400BB-32AUA1, DCM DRCAEVFA, Western Digital 40GB IDE 3.5 Hard Drive;
- WD100BB-75AUA1, DCM DSBHEGHH, Western Digital 10GB IDE 3.5 Hard Drive;
- WD400BB-53AUA1, DCM DSCBEGHB, Western Digital 40GB IDE 3.5 Hard Drive
The 2060-001003-001 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.
2060-001003-001 Western Digital PCB: Board Number

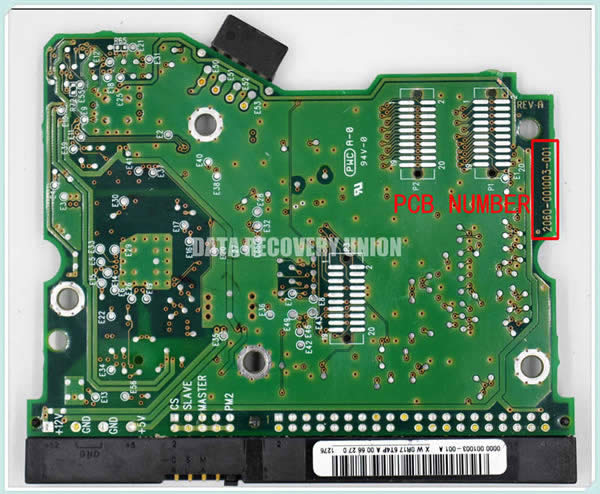

Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-*** on the board. The following picture shows the board number of 2060-001003-001 Western Digital PCB.
2060-001003-001 Western Digital PCB: BIOS Chip
The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-001003-001 Western Digital PCB.
.
BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.
PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers
2060-001003-001 Western Digital PCB: Repair Video
The following video from YOUTUBE shows the repair process of 2060-001003-001 Western Digital PCB.
2060-001003-001 Western Digital PCB: PCB Supplier
HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 2060-001003-001 on it, good luck!
