2060-001173-004 WD PCB Circuit Board

DATARECOVERYUNION.COM07 mins

HDD Printed circuit board (PCB) with board number 2060-001173-004 is usually used on these Western Digital hard disk drives:

  • WD1600BB-98DWA0, DCM DSBHCTJAA, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1200LB-55EDA0, DCM FSBACTJAH, Western Digital 120GB IDE 3.5 Hard Drive;
  • WD1600AB-22DYA0, DCM HSBHCTJCH, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1200AB-00DYA0, DCM DSCHCVJAH, Western Digital 120GB IDE 3.5 Hard Drive;
  • WD1200BB-53DWA0, DCM HSBANTJCH, Western Digital 120GB IDE 3.5 Hard Drive;
  • WD1600AB-00DYA0, DCM HSBHCVJAA, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD2500BB-98DWA0, DCM DSBACVJAA, Western Digital 250GB IDE 3.5 Hard Drive;
  • WD1200BB-00DWA0, DCM HSCACVJAH, Western Digital 120GB IDE 3.5 Hard Drive;
  • WD1200BB-00FTA0, DCM HSBACVJAH, Western Digital 120GB SATA 3.5 Hard Drive;
  • WD2000BB-00DWA0, DCM DSCHCTJAH, Western Digital 200GB IDE 3.5 Hard Drive;
  • WD1600AB-00DYA0, DCM DSBACTJAA, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1200BB-00FTA0, DCM HSBHNTJAH, Western Digital 120GB IDE 3.5 Hard Drive;
  • WD1200BB-22FTA0, DCM HSBACTJAA, Western Digital 120GB IDE 3.5 Hard Drive;
  • WD1200BB-22FTA0, DCM HSBHNTJCH, Western Digital 120GB IDE 3.5 Hard Drive;
  • WD1600AB-22DYA0, DCM HSCACVJAA, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1200LB-55EDA0, DCM HSBHCVJAH, Western Digital 120GB IDE 3.5 Hard Drive;
  • WD2500LB-55EDA0, DCM HSBACTJAH, Western Digital 250GB IDE 3.5 Hard Drive;
  • WD2000BB-98FTA0, DCM HSBACTJAA, Western Digital 200GB IDE 3.5 Hard Drive;
  • WD1600AB-00DYA0, DCM HSBACTJAA, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1600BB-00HTA0, DCM HSBHCTJCH, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1600BB-98FTA0, DCM FSBACTJCA, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD2000BB-50DWA0, DCM HSBACVJAH, Western Digital 200GB IDE 3.5 Hard Drive;
  • WD1200BB-53DWA0, DCM HSBACAJAH, Western Digital 120GB IDE 3.5 Hard Drive;
  • WD2500BB-00DWA0, DCM HSBHCVJAH, Western Digital 250GB IDE 3.5 Hard Drive;
  • WD2000BB-00DWA0, DCM HSBACVJAH, Western Digital 200GB IDE 3.5 Hard Drive;
  • WD1200AB-00DYA0, DCM HSCHCVJAH, Western Digital 120GB IDE 3.5 Hard Drive;
  • WD1600AB-00DYA0, DCM HSBHCTJAA, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1200BB-16DWA0, DCM DSCHCVJAA, Western Digital 120GB IDE 3.5 Hard Drive;
  • WD2500BB-50DWA0, DCM HSBHCVJAH, Western Digital 250GB IDE 3.5 Hard Drive;
  • WD1200BB-00DWA0, DCM HSBHCTJAH, Western Digital 120GB IDE 3.5 Hard Drive;
  • WD2000BB-00FTA0, DCM FSCHCVJAA, Western Digital 200GB IDE 3.5 Hard Drive;
  • WD1600BB-00FTA0, DCM HSBHCTJCA, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1200AB-22DYA0, DCM DSBHCVJAH, Western Digital 120GB IDE 3.5 Hard Drive;
  • WD2500BB-00FTA0, DCM HSBHCVJAH, Western Digital 250GB IDE 3.5 Hard Drive;
  • WD2500BB-98FTA0, DCM HSBACTJAA, Western Digital 250GB IDE 3.5 Hard Drive;
  • WD1200LB-55EDA0, DCM HSBHCTJCA, Western Digital 120GB IDE 3.5 Hard Drive;
  • WD1200BB-98DWA0, DCM HSBHCVJAH, Western Digital 120GB IDE 3.5 Hard Drive;
  • WD2500BB-22FTA0, DCM HSCHCVJAH, Western Digital 250GB IDE 3.5 Hard Drive

The 2060-001173-004 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.

2060-001173-004 Western Digital PCB: Board Number

Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-*** on the board. The following picture shows the board number of 2060-001173-004 Western Digital PCB.

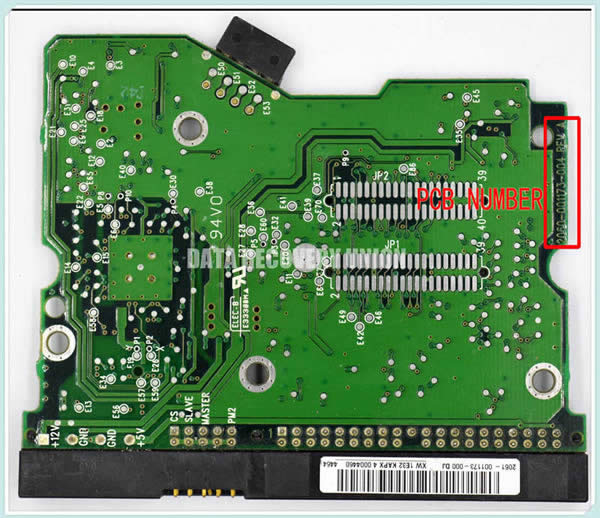

2060-001173-004 Western Digital PCB Board Number

2060-001173-004 Western Digital PCB: BIOS Chip

The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-001173-004 Western Digital PCB.

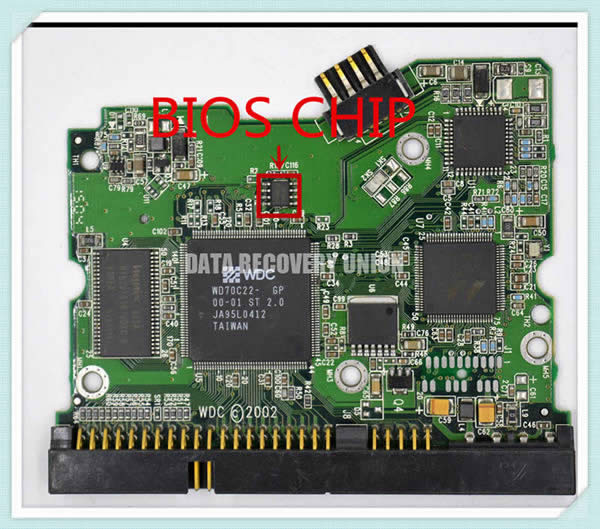

2060-001173-004 Western Digital PCB BIOS Chip.

BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.

PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers

2060-001173-004 Western Digital PCB: Repair Video

The following video from YOUTUBE shows the repair process of 2060-001173-004 Western Digital PCB.

2060-001173-004 Western Digital PCB: PCB Supplier

HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 2060-001173-004 on it, good luck!
