HDD Printed circuit board (PCB) with board number 2060-001292-000 is usually used on these Western Digital hard disk drives:
- WD400BB-00LNA0, DCM HSBHYTJCA, Western Digital 40GB SATA 3.5 Hard Drive;
- WD800JD-60JRA0, DCM DSBHNTJCH, Western Digital 80GB SATA 3.5 Hard Drive;
- WD800BB-60JKA0, DCM HSBHNTJCH, Western Digital 80GB IDE 3.5 Hard Drive;
- WD800BB-00JHA0, DCM DSCHCTJCH, Western Digital 80GB IDE 3.5 Hard Drive;
- WD400BB-00JHA0, DCM DSBHNAJCA, Western Digital 40GB IDE 3.5 Hard Drive;
- WD800JB-00JJA0, DCM ESBHCTJAH, Western Digital 80GB IDE 3.5 Hard Drive;
- WD400BB-60JKA0, DCM DSBHCTJCH, Western Digital 40GB IDE 3.5 Hard Drive;
- WD400BB-00JHA0, DCM DSBHNTJCH, Western Digital 40GB IDE 3.5 Hard Drive;
- WD800BB-55JKA0, DCM HSBHNTJCH, Western Digital 80GB IDE 3.5 Hard Drive;
- WD400BB-60JKA0, DCM HSBHYAJAH, Western Digital 40GB IDE 3.5 Hard Drive;
- WD800JB-00JJA0, DCM HSBHYAJCA, Western Digital 80GB IDE 3.5 Hard Drive;
- WD400BB-22JHA0, DCM HSBHYTJCH, Western Digital 40GB IDE 3.5 Hard Drive;
- WD400BB-00LNA0, DCM DSBHYTJAH, Western Digital 40GB IDE 3.5 Hard Drive;
- WD800BB-60JKA0, DCM HSBHCTJCH, Western Digital 80GB IDE 3.5 Hard Drive;
- WD800JB-00JJA0, DCM HSBHNTJAH, Western Digital 80GB IDE 3.5 Hard Drive;
- WD800BB-75JHA0, DCM DSBHYTJCH, Western Digital 80GB IDE 3.5 Hard Drive;
- WD400JB-00JJA0, DCM ESBHCTJCH, Western Digital 40GB IDE 3.5 Hard Drive;
- WD400BB-60JKA0, DCM DSCACTJCA, Western Digital 40GB IDE 3.5 Hard Drive;
- WD400JB-00JJA0, DCM DSCACTJAA, Western Digital 40GB IDE 3.5 Hard Drive;
- WD400BB-00JHA0, DCM ESBHCTJAH, Western Digital 40GB IDE 3.5 Hard Drive;
- WD400BB-22JHA0, DCM DSBHYTJCH, Western Digital 40GB IDE 3.5 Hard Drive
The 2060-001292-000 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.
2060-001292-000 Western Digital PCB: Board Number

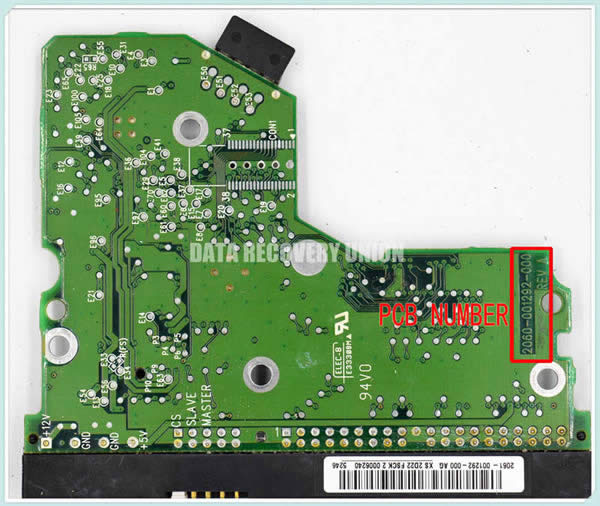

Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-*** on the board. The following picture shows the board number of 2060-001292-000 Western Digital PCB.
2060-001292-000 Western Digital PCB: BIOS Chip
The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-001292-000 Western Digital PCB.
.
BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.
PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers
2060-001292-000 Western Digital PCB: Repair Video
The following video from YOUTUBE shows the repair process of 2060-001292-000 Western Digital PCB.
2060-001292-000 Western Digital PCB: PCB Supplier
HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 2060-001292-000 on it, good luck!
