2060-701292-001 WD PCB Circuit Board

DATARECOVERYUNION.COM06 mins

HDD Printed circuit board (PCB) with board number 2060-701292-001 is usually used on these Western Digital hard disk drives:

  • WD1600BB-55RDA0, DCM HSBHCTJCH, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1200BB-00RDA0, DCM DSBANT2CH, Western Digital 120GB IDE 3.5 Hard Drive;
  • WD2500BB-00RDA0, DCM DSBHNT2CH, Western Digital 250GB IDE 3.5 Hard Drive;
  • WD2500BB-22RDA0, DCM DSCHCTJCH, Western Digital 250GB IDE 3.5 Hard Drive;
  • WD1200BB-00RDA0, DCM HSCANTJAA, Western Digital 120GB IDE 3.5 Hard Drive;
  • WD20EARX-00PASB0, DCM JHARNNTJCH, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD1600BB-56RDA0, DCM DSCHNTJAH, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1600BB-56RDA0, DCM DSCACTJAA, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD2000BB-22RDA0, DCM DSCHCTJAH, Western Digital 200GB IDE 3.5 Hard Drive;
  • WD1600JB-00REA0, DCM HBCACTJCA, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1200BB-00RDA0, DCM DSCANTJCA, Western Digital 120GB IDE 3.5 Hard Drive;
  • WD2000BB-22RDA0, DCM DSBAYT2CA, Western Digital 200GB IDE 3.5 Hard Drive;
  • WD2000BB-22RDA0, DCM DSCHCTJAA, Western Digital 200GB IDE 3.5 Hard Drive;
  • WD1600JB-00REA0, DCM HSCANTJAHN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1200BB-00RDA0, DCM DSBHNTJCH, Western Digital 120GB IDE 3.5 Hard Drive;
  • WD1600JB-00REA0, DCM DSCHCTJCH, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD2000BB-55RDA0, DCM DSCHCTJCH, Western Digital 200GB IDE 3.5 Hard Drive;
  • WD2500JB-00REA0, DCM DSBHYTJAAN, Western Digital 250GB IDE 3.5 Hard Drive;
  • WD2000BB-00RDA0, DCM DSBHNTJCHN, Western Digital 200GB IDE 3.5 Hard Drive;
  • WD2500BB-22RDA0, DCM DSBANTJCA, Western Digital 250GB IDE 3.5 Hard Drive;
  • WD10TMVW-11ZSMS4, DCM HHMT2HBB, Western Digital 1TB USB 2.5 Hard Drive;
  • WD2500JB-00REA0, DCM DSCANTJAHN, Western Digital 250GB IDE 3.5 Hard Drive;
  • WD2500SB-01RFA0, DCM DSCHCTJCH, Western Digital 250GB IDE 3.5 Hard Drive;
  • WD2500JB-00REA0, DCM DSBANTJAAN, Western Digital 250GB IDE 3.5 Hard Drive;
  • WD1600JB-22REA0, DCM HSCANT2AA, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1600BB-56RDA0, DCM HSCHCTJCA, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD2500AAKS-60L9A0, DCM HBNNHT2CE, Western Digital 250GB SATA 3.5 Hard Drive;
  • WD2500JB-00REA0, DCM DSCHNTJAH, Western Digital 250GB IDE 3.5 Hard Drive;
  • WD2500BB-22RDA0, DCM DSBACTJCA, Western Digital 250GB IDE 3.5 Hard Drive;
  • WD1600JB-00REA0, DCM HSBANT2AA, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD2000BB-14RDA0, DCM DSCACTJCA, Western Digital 200GB IDE 3.5 Hard Drive;
  • WD1600JB-00REA0, DCM HSBAYTJCA, Western Digital 160GB IDE 3.5 Hard Drive

The 2060-701292-001 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.

2060-701292-001 Western Digital PCB: Board Number

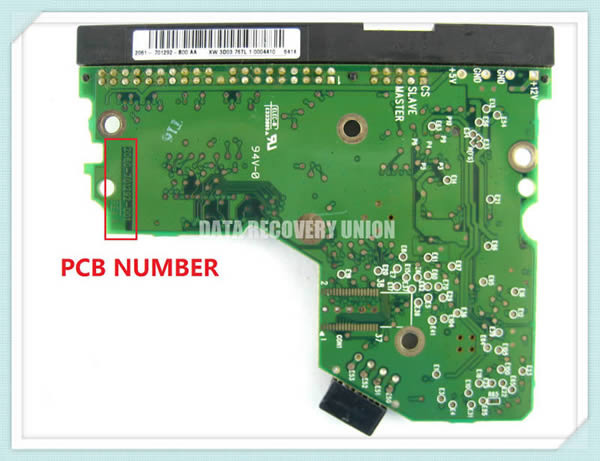

Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-*** on the board. The following picture shows the board number of 2060-701292-001 Western Digital PCB.

2060-701292-001 Western Digital PCB Board Number

2060-701292-001 Western Digital PCB: BIOS Chip

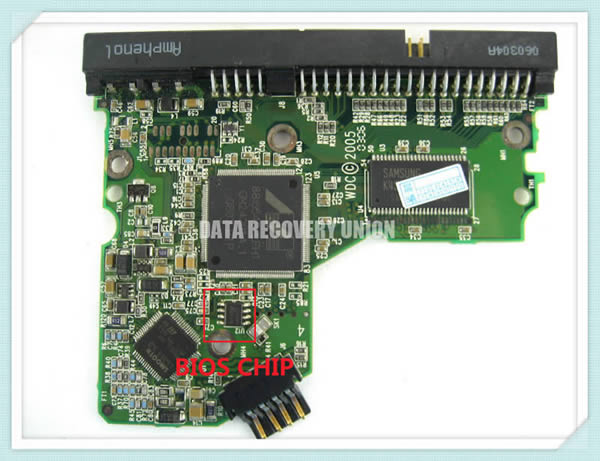

The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-701292-001 Western Digital PCB.

2060-701292-001 Western Digital PCB BIOS Chip.

BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.

PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers

2060-701292-001 Western Digital PCB: Repair Video

The following video from YOUTUBE shows the repair process of 2060-701292-001 Western Digital PCB.

2060-701292-001 Western Digital PCB: PCB Supplier

HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 2060-701292-001 on it, good luck!
