2060-701596-001 WD PCB Circuit Board

DATARECOVERYUNION.COM012 mins

HDD Printed circuit board (PCB) with board number 2060-701596-001 is usually used on these Western Digital hard disk drives:

  • WD1600AAJB-00J3A0, DCM EGRNHTJAEN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD800AAJB-00J3A0, DCM HBNCHT2AHN, Western Digital 80GB IDE 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM DANNHV2MGB, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM HBRCHTJCHN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD3200AAJB-00J3A0, DCM HHNCHTJCGN, Western Digital 320GB IDE 3.5 Hard Drive;
  • WD3200AAJB-00J3A0, DCM HGRNKT2CGB, Western Digital 320GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM DHRCHTJAGN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM EHRNHTJAHN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1600AAJB-56R1A0, DCM EHRNHTJAGN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD3200AAJB-00J3A0, DCM EARNNT2AHN, Western Digital 320GB IDE 3.5 Hard Drive;
  • WD800AAJB-00J3A0, DCM HHRNHTJCHN, Western Digital 80GB IDE 3.5 Hard Drive;
  • WD800AAJB-00J3A0, DCM HHRCHTJCHN, Western Digital 80GB IDE 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM HANNNT2CAN, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM HARCHTJCHN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1600AVJB-63J5A0, DCM DBRNHT2AGN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM HGNNNT2MGB, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM DANNHT2MGN, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD1600AAJB-56R1A0, DCM HANNHTJAEN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD3200AAJB-56R1A0, DCM HARNNT2AHN, Western Digital 320GB SATA 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM HHRNHT2MHB, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD3200AAJB-00J3A0, DCM HHRNNT2CHN, Western Digital 320GB IDE 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM EGNNHT2MAN, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD1600AAJB-56R1A0, DCM EARNNT2AHN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1600AVJB-63J5A0, DCM HARNHTJAHN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD2500AAJB-00J3A0, DCM HANNHTJAHN, Western Digital 250GB IDE 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM HHRNHT2CBB, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM HANNNT2AHB, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM HGNNHTJMGB, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD3200AAJB-00J3A0, DCM HANNNTJAGN, Western Digital 320GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM HGRNHT2CHN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM HGRNNT2AHN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM EHNNNT2MAN, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD1600AAJB-56R1A0, DCM DGNNHT2AGN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM DHRNNT2AEB, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM HHRNNTJMHB, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM HHNNHTJMHB, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM HHRNNT2AEN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD3200AAJB-00J3A0, DCM HGRNNT2CGN, Western Digital 320GB IDE 3.5 Hard Drive;
  • WD1600AAJB-56R1A0, DCM HANNHTJCGN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM DGRNHT2AGB, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD3200AVJB-63J5A0, DCM HBRNNT2AGN, Western Digital 320GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM HARCNTJCGN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD3200AAJB-00J3A0, DCM EANNHTJAHN, Western Digital 320GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM HGRCHTJAG, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD800AAJB-00J3A0, DCM DGRNHT2CGN, Western Digital 80GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM DGRNNTJAHN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1600AAJB-56R1A0, DCM HARNNTJAHN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD3200AAJB-00J3A0, DCM HGNNNT2AHB, Western Digital 320GB IDE 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM EBRNHT2MBB, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM HARNHT2MAB, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM DHRCHT2AHB, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1600AAJB-56R1A0, DCM EARNNT2MHN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM HGRNNT2AGN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM HHRNNTJCHB, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM EANNHT2MBN, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM HGNNKT2AHB, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD2500AAJB-00J3A0, DCM EGRNHT2AGN, Western Digital 250GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM EANNHTJAEN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM HBRNHT2MAN, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM HARNHT2AEN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM HGNNHT2CGB, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD3200AAJB-56R1A0, DCM DBNNHTJMHN, Western Digital 320GB IDE 3.5 Hard Drive;
  • WD3200AAJB-00J3A0, DCM HHNHTJAHN, Western Digital 320GB IDE 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM HBNNNTJMBB, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM HBNNHT2MHN, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD1600AAJB-56R1A0, DCM HBRNHTJAHN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD3200AAJB-00J3A0, DCM HANNHT2AGB, Western Digital 320GB IDE 3.5 Hard Drive;
  • WD5000AAKB-00H8A0, DCM HBRNNT2MHB, Western Digital 500GB IDE 3.5 Hard Drive;
  • WD800AAJB-00J3A0, DCM EBRNHTJCEN, Western Digital 80GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM HBRNNTJAHN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD2500AAJB-00J3A0, DCM DGRNHTJAH, Western Digital 250GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM HGNNNTJAHN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD800AAJB-00J3A0, DCM EGRNNT2AGN, Western Digital 80GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM HGNNKT2AHN, Western Digital 160GB IDE 3.5 Hard Drive;
  • WD3200AVJB-63J5A0, DCM DARNNTJMEN, Western Digital 320GB IDE 3.5 Hard Drive;
  • WD1600AAJB-00J3A0, DCM HGNNHT2AHB, Western Digital 160GB IDE 3.5 Hard Drive

The 2060-701596-001 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.

2060-701596-001 Western Digital PCB: Board Number

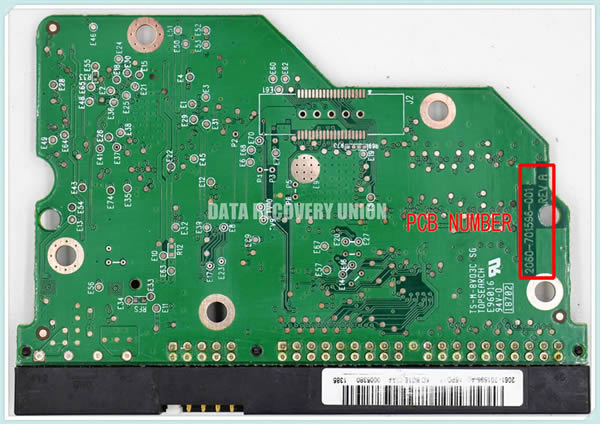

Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-*** on the board. The following picture shows the board number of 2060-701596-001 Western Digital PCB.

2060-701596-001 Western Digital PCB Board Number

2060-701596-001 Western Digital PCB: BIOS Chip

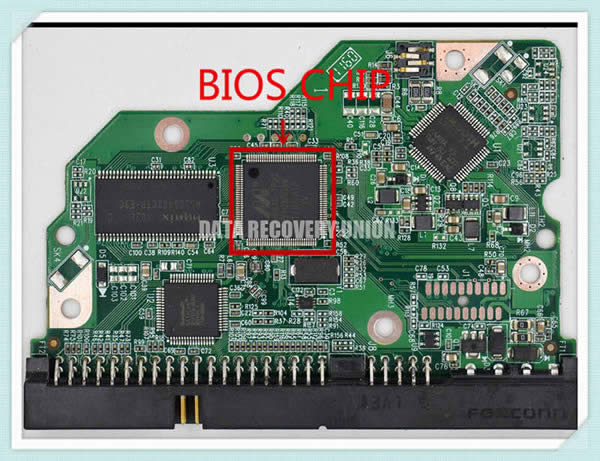

The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-701596-001 Western Digital PCB.

2060-701596-001 Western Digital PCB BIOS Chip.

BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.

PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers

2060-701596-001 Western Digital PCB: Repair Video

The following video from YOUTUBE shows the repair process of 2060-701596-001 Western Digital PCB.

2060-701596-001 Western Digital PCB: PCB Supplier

HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 2060-701596-001 on it, good luck!
