HDD Printed circuit board (PCB) with board number 2060-771577-001 is usually used on these Western Digital hard disk drives:
- WD1602ABJS-43P5A0, DCM HARNHV2CAN, Western Digital 160GB SATA 3.5 Hard Drive;
- WD1602ABJS-43P5A0, DCM HHRNNV2CHN, Western Digital 160GB SATA 3.5 Hard Drive;
- WD3200AAJS-40H3A1, DCM HHNNHT2CHN, Western Digital 320GB SATA 3.5 Hard Drive;
- WD3200AAJS-40H3A0, DCM HHRNHT2CHN, Western Digital 320GB SATA 3.5 Hard Drive;
- WD1600AAJS-40H3A1, DCM HHRNHT2AHN, Western Digital 160GB SATA 3.5 Hard Drive;
- WD3200AAJS-40H3A0, DCM HHRNHT2AHN, Western Digital 320GB SATA 3.5 Hard Drive;
- WD1602ABJS-43P5A0, DCM HHNNNV2MHN, Western Digital 160GB SATA 3.5 Hard Drive;
- WD3200AAJS-40H3A0, DCM HGNNNTJCHN, Western Digital 320GB SATA 3.5 Hard Drive;
- WD6400AAKS-40H2B0, DCM HARNHTJMA, Western Digital 640GB SATA 3.5 Hard Drive;
- WD3200AAJS-40H3A0, DCM HHRNHV2CHN, Western Digital 320GB SATA 3.5 Hard Drive;
- WD6400AAKS-41H2B0, DCM HHNNHVJMH, Western Digital 640GB SATA 3.5 Hard Drive;
- WD6400AAKS-41H2B0, DCM HANNNV2MAN, Western Digital 640GB SATA 3.5 Hard Drive;
- WD5000AAKS-00A7B0, DCM HARNHVJCB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD6400AAKS-41H2B0, DCM HARNHV2MAB, Western Digital 640GB SATA 3.5 Hard Drive;
- WD6400AAKS-41H2B0, DCM HARNHV2MHB, Western Digital 640GB SATA 3.5 Hard Drive;
- WD3200AAJS-40H3A1, DCM HGNNNT2AAN, Western Digital 320GB SATA 3.5 Hard Drive;
- WD5000AAKS-42H2B0, DCM HGRNNV2MAB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD6400AAKS-00H2B0, DCM HHNNNTJMB, Western Digital 640GB SATA 3.5 Hard Drive;
- WD6400AAKS-40H2B0, DCM HANNHVJMA, Western Digital 640GB SATA 3.5 Hard Drive;
- WD3200AAJS-40H3A2, DCM HARNNT2CAN, Western Digital 320GB SATA 3.5 Hard Drive;
- WD6400AAKS-41H2B0, DCM HHNNNV2MH, Western Digital 640GB SATA 3.5 Hard Drive;
- WD6400AAKS-40H2B0, DCM HHNNNV2CHB, Western Digital 640GB SATA 3.5 Hard Drive;
- WD1600AAJS-40H3A1, DCM HHRNNV2AHN, Western Digital 160GB SATA 3.5 Hard Drive;
- WD5000AAKS-00H2B0, DCM HARNHV2MA, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-00H2B0, DCM HGNNNV2MBN, Western Digital 500GB SATA 3.5 Hard Drive;
- WD6400AAKS-40H2B0, DCM HARNHVJMAB, Western Digital 640GB SATA 3.5 Hard Drive;
- WD5000AAKS-00H2B0, DCM HBRNHVJCB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD1600AAJS-40H3A1, DCM HARNHT2AHN, Western Digital 160GB SATA 3.5 Hard Drive;
- WD6400AAKS-40H2B0, DCM HANNHV2MH, Western Digital 640GB SATA 3.5 Hard Drive;
- WD1602ABJS-43P5A0, DCM HANNNV2MHN, Western Digital 160GB SATA 3.5 Hard Drive;
- WD6400AAKS-40H2B0, DCM DHNNNV2MH, Western Digital 640GB SATA 3.5 Hard Drive;
- WD1600AAJS-40H3A1, DCM DHRNNT2AAN, Western Digital 160GB SATA 3.5 Hard Drive;
- WD3200AAJS-40H3A0, DCM HGRNHT2AHN, Western Digital 320GB SATA 3.5 Hard Drive;
- WD5000AAKS-42H2B0, DCM DBNNHVJMA, Western Digital 500GB SATA 3.5 Hard Drive;
- WD6400AAKS-41H2B0, DCM HGNNHV2MAN, Western Digital 640GB SATA 3.5 Hard Drive;
- WD3200AAJS-40H3A1, DCM DHRNNT2CHN, Western Digital 320GB SATA 3.5 Hard Drive;
- WD6400AAKS-41H2B0, DCM DARNHV2MBB, Western Digital 640GB SATA 3.5 Hard Drive;
- WD5000AAKS-00H2B0, DCM HANNNT2MA, Western Digital 500GB SATA 3.5 Hard Drive;
- WD3200AAJS-40H3A0, DCM HHRNHTJCHN, Western Digital 320GB SATA 3.5 Hard Drive;
- WD5000AAKS-00H2B1, DCM EBNNHV2MHB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-42H2B0, DCM HANNHVJCA, Western Digital 500GB SATA 3.5 Hard Drive;
- WD3200AAJS-40H3A0, DCM HBNNHTJCHN, Western Digital 320GB SATA 3.5 Hard Drive;
- WD3200AAJS-40H3A2, DCM HHRNNT2CAN, Western Digital 320GB SATA 3.5 Hard Drive;
- WD6400AAKS-40H2B0, DCM HHNNHTJCH, Western Digital 640GB SATA 3.5 Hard Drive;
- WD6400AAKS-40H2B0, DCM HBNNHTJCA, Western Digital 640GB SATA 3.5 Hard Drive;
- WD1600AAJS-40H3A2, DCM DARNHT2AAN, Western Digital 160GB SATA 3.5 Hard Drive;
- WD6400AAKS-40H2B0, DCM HHRNHV2MHB, Western Digital 640GB SATA 3.5 Hard Drive;
- WD6400AAKS-40H2B0, DCM HBNNHTJCB, Western Digital 640GB SATA 3.5 Hard Drive;
- WD6400AAKS-40H2B0, DCM DANNHV2MA, Western Digital 640GB SATA 3.5 Hard Drive;
- WD5000AAKS-42H2B0, DCM HBNNHV2MB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD1600AAJS-40H3A1, DCM HGRNHV2ABN, Western Digital 160GB SATA 3.5 Hard Drive;
- WD6400AAKS-40H2B1, DCM HGNNNV2CAB, Western Digital 640GB SATA 3.5 Hard Drive
The 2060-771577-001 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.
2060-771577-001 Western Digital PCB: Board Number

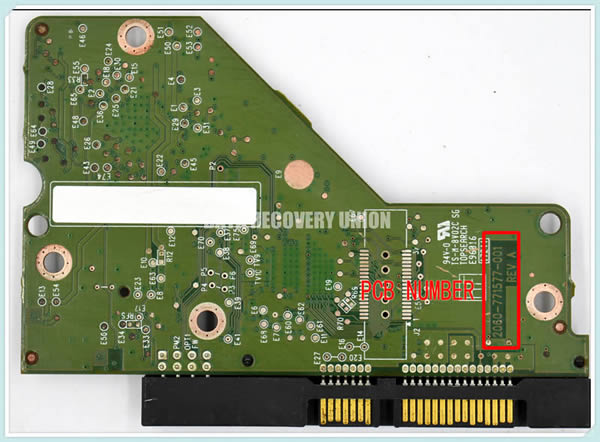

Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-*** on the board. The following picture shows the board number of 2060-771577-001 Western Digital PCB.
2060-771577-001 Western Digital PCB: BIOS Chip

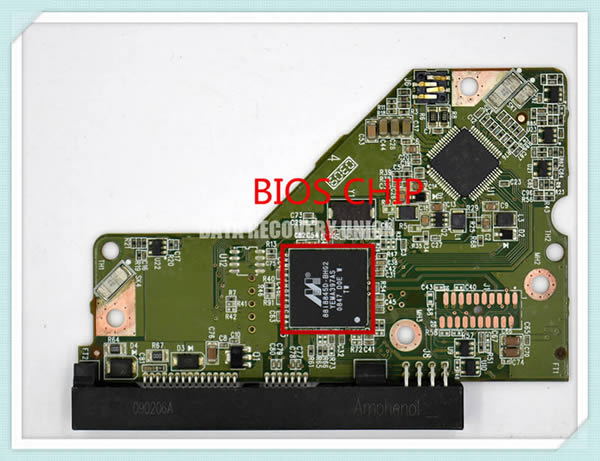

The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-771577-001 Western Digital PCB.
.
BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.
PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers
2060-771577-001 Western Digital PCB: Repair Video
The following video from YOUTUBE shows the repair process of 2060-771577-001 Western Digital PCB.
2060-771577-001 Western Digital PCB: PCB Supplier
HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 2060-771577-001 on it, good luck!
