2060-771624-003 WD PCB Circuit Board

DATARECOVERYUNION.COM09 mins

HDD Printed circuit board (PCB) with board number 2060-771624-003 is usually used on these Western Digital hard disk drives:

  • WD1501FASS-00W2B0, DCM HARCHV2CA, Western Digital 1.5TB SATA 3.5 Hard Drive;
  • WD2001FASS-00W2B0, DCM HBBCNV2CB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2003FYYS-05T9B0, DCM HBRCHV2AA, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2001FASS-00W2B0, DCM HBRCHV2CB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2003FYYS-02W0B0, DCM HBRCNV2CB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2002FAEX-007BA0, DCM HBNCHV2ABB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD1002FAEX-007BA0, DCM HARCHV2CA, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD2003FYYS-02W0B0, DCM HBRCHV2AA, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2003FYYS-02W0B1, DCM HARCNV2ABB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2003FYYS-02W0B1, DCM HARCHV2AAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2003FYYS-02W0B1, DCM HANCHV2AA, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2003FYYS-18W0B0, DCM HARCHV2AA, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2002FAEX-007BA0, DCM HARCHV2AA, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2003FYYS-23W0B0, DCM HARCHV2CA, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2003FYYS-02W0B1, DCM HBRCNV2AAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD1501FASS-00W2B0, DCM HHMTJHKB, Western Digital 1.5TB SATA 3.5 Hard Drive;
  • WD2002FAEX-007BA0, DCM HARCHV2CB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2002FAEX-007BA0, DCM HARCHV2ABB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD1502FAEX-007BA0, DCM HARCHV2AA, Western Digital 1.5TB SATA 3.5 Hard Drive;
  • WD2003FYYS-02W0B0, DCM HBRCHV2CA, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD1002FAEX-007BA0, DCM HBRCHV2CB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD2002FAEX-007BA0, DCM HBRCHV2AA, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2001FASS-00W2B0, DCM HARCHV2CA, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2003FYYS-02W0B0, DCM HBRCHV2CB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2003FYYS-05T9B0, DCM HARCNV2AB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2002FAEX-007BA0, DCM HBRCHV2AB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2001FASS-00W2B0, DCM HARCNV2CB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2002FAEX-007BA0, DCM HANCNV2AAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD1502FAEX-007BA0, DCM HARCHV2CA, Western Digital 1.5TB SATA 3.5 Hard Drive;
  • WD2001FASS-00W2B0, DCM HBRCHV2CA, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2003FYYS-05T9B0, DCM HARCHV2AA, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2002FAEX-007BA0, DCM HARCHV2AAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2003FYYS-02W0B0, DCM HARCNV2CA, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2003FYYS-18W0B0, DCM HARCHV2AB, Western Digital 2 TB SATA 3.5 Hard Drive;
  • WD2003FYYS-02W0B1, DCM HARCHV2ABB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2002FAEX-007BA0, DCM HARNCNV2ABB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2003FYYS-02W0B1, DCM HBNCHV2ABB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD1002FAEX-007BA0, DCM HBRCHV2AB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD2003FYYS-02W0B1, DCM HANCNV2AAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2002FAEX-007BA0, DCM HBRCNV2CB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2002FAEX-007BA0, DCM HARCHV2CA, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2003FYYS-05T9B0, DCM HBNCHV2AAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2003FYYS-02W0B1, DCM HBRCHV2AAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD1502FAEX-007BA0, DCM HBRCHV2CB, Western Digital 1.5TB SATA 3.5 Hard Drive;
  • WD2002FAEX-007BA0, DCM HARCNV2AAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2001FASS-00W2B0, DCM HBRCHV2AA, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2003FYYS-05T9B0, DCM HARCHV2AB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2003FYYS-02W0B0, DCM HARCHV2CA, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2001FASS-00W2B0, DCM HARCHV2A, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD2002FAEX-007BA0, DCM HANCHV2AB, Western Digital 2TB SATA 3.5 Hard Drive

The 2060-771624-003 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.

2060-771624-003 Western Digital PCB: Board Number

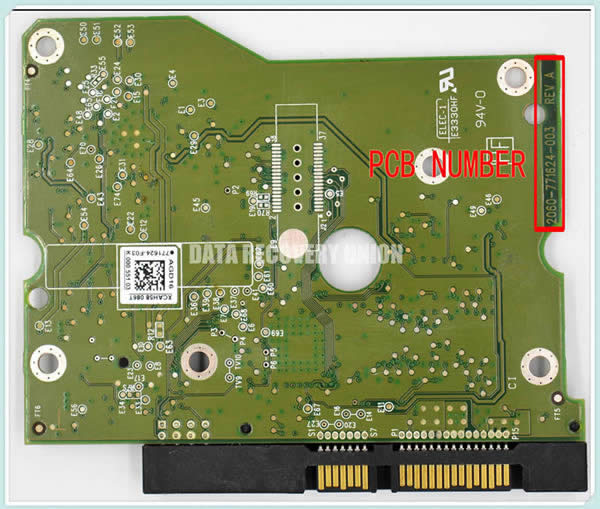

Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-*** on the board. The following picture shows the board number of 2060-771624-003 Western Digital PCB.

2060-771624-003 Western Digital PCB Board Number

2060-771624-003 Western Digital PCB: BIOS Chip

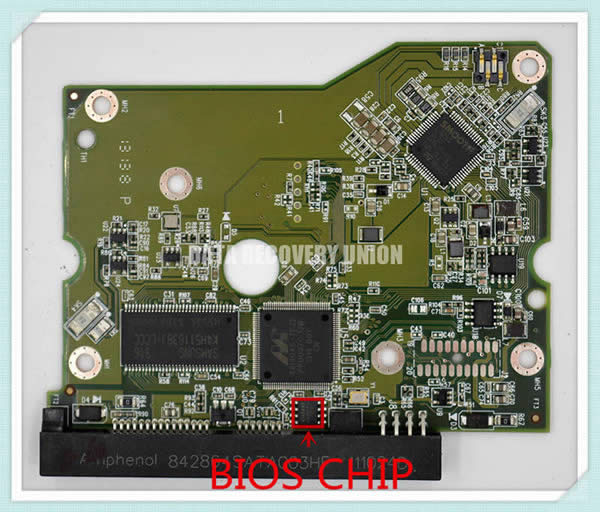

The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-771624-003 Western Digital PCB.

2060-771624-003 Western Digital PCB BIOS Chip.

BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.

PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers

2060-771624-003 Western Digital PCB: Repair Video

The following video from YOUTUBE shows the repair process of 2060-771624-003 Western Digital PCB.

2060-771624-003 Western Digital PCB: PCB Supplier

HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 2060-771624-003 on it, good luck!
