2060-771629-006 WD PCB Circuit Board

DATARECOVERYUNION.COM012 mins

HDD Printed circuit board (PCB) with board number 2060-771629-006 is usually used on these Western Digital hard disk drives:

  • WD7500BPKT-00PK4T0, DCM EACTJHNB, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKX-75HPJT0, DCM HAOTJAB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BPVT-00KPFT0, DCM EBNTJANB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKT-75PK4T0, DCM HACTJANB, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD7500BPKT-60PK4T0, DCM EAOTJAN, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD7500BPKT-22PK4T0, DCM EHOTJHB, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKT-00PK4T0, DCM HACTJANB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BPKT-00PK4T0, DCM EACTJANB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKT-75PK4T0, DCM HACTJHBB, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKX-75HPJT0, DCM HHNTJHN, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BPKT-22PK4T0, DCM HBNTJBNB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKT-60PK4T0, DCM HACTJHBB, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD7500BPKX-22HPJT0, DCM HHNTJHK, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD7500BPKX-22HPJT0, DCM EAOTJAB, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD7500BPKT-22PK4T0, DCM EAOTJHK, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKT-22PK4T0, DCM HBOTJAN, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BPKT-00PK4T0, DCM EACTJBNB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKX-75HPJT0, DCM EAOTJAK, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKT-00PK4T0, DCM HAOTJHN, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BPKT-80PK4T0, DCM EBCTJBNB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BPKT-22PK4T0, DCM HBNTJHNB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BPKT-75PK4T0, DCM EHOTJHB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BPKT-00PK4T0, DCM EHCTJHB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKX-22HPJT0, DCM EAOTJAK, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKX-22HPJT0, DCM EHOTJAK, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BPKT-80PK4T0, DCM EBOTJBN, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BPKT-75PK4T0, DCM HACTJHBB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BPKT-75PK4T0, DCM HHCTJHB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKT-22PK4T0, DCM EHOTJAB, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKT-75PK4T0, DCM HACTJHB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BTKT-40MD3T0, DCM HACTJAB, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKX-75HPJT0, DCM HHNTJHK, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BPKT-60PK4T0, DCM HACTJBBB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKX-22HPJT0, DCM EHNTJHK, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD7500BPKT-60PK4T0, DCM HAOTJHN, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKT-75PK4T0, DCM HANTJBBB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BPKX-75HPJT0, DCM EAOTJAB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKT-75PK4T0, DCM EHCTJHB, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKT-75PK4T0, DCM EAOTJAN, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BTKT-40MD3T0, DCM EACTJAB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BPKX-22HPJT0, DCM HHOTJHK, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BPKT-60PK4T0, DCM EBCTJBNB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKX-22HPJT0, DCM HHNTJHN, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKT-00PK4T0, DCM HBNTJAN, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKT-80PK4T0, DCM EBCTJBBB, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD7500BPKX-80HPJT0, DCM HHOTJHK, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKT-60PK4T0, DCM HHOTJAB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKT-75PK4T0, DCM HHCTJBBB, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKT-75PK4T0, DCM HHCTJHN, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKX-00HPJT0, DCM HANTJAK, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD7500BPKT-00PK4T0, DCM EAOTJAN, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKX-00HPJT0, DCM HHNTJAK, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKX-00HPJT0, DCM EHNTJHK, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKT-60PK4T0, DCM EBCTJBBB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKT-22PK4T0, DCM EAOTJAN, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKT-75PK4T0, DCM HACTJAB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKT-75PK4T0, DCM EACTJBBB, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD7500BPKX-22HPJT0, DCM EHNTJHB, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPVT-00KPFT0, DCM EHCTJBBB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BPKT-60PK4T0, DCM HHOTJHB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BPKT-75PK4T0, DCM EHOTJHN, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKX-75HPJT0, DCM HAOTJAK, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKT-60PK4T0, DCM HAOTJAB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKT-60PK4T0, DCM EHOTJHN, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD7500BPKT-00PK4T0, DCM HBCTJBBB, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKT-75PK4T0, DCM HHOTJHN, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BPKT-00PK4T0, DCM EHCTJAB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKX-75HPJT0, DCM HHOTJHK, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKX-00HPJT0, DCM HANTJAB, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKT-75PK4T0, DCM HBCTJBB, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD7500BPKT-22PK4T0, DCM HHOTJHB, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD7500BPKT-80PK4T0, DCM HACTJBBB, Western Digital 750 GB SATA 2.5 Hard Drive;
  • WD7500BPKT-75PK4T0, DCM EAOTJAB, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD5000BPKT-00PK4T0, DCM EHOTJHN, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD5000BPKX-22HPJT0, DCM HBOTJHN, Western Digital 500GB SATA 2.5 Hard Drive;
  • WD7500BPKT-00PK4T0, DCM EHOTJHN, Western Digital 750GB SATA 2.5 Hard Drive;
  • WD7500BPKX-75HPJT0, DCM HBOTJAK, Western Digital 750GB SATA 2.5 Hard Drive

The 2060-771629-006 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.

2060-771629-006 Western Digital PCB: Board Number

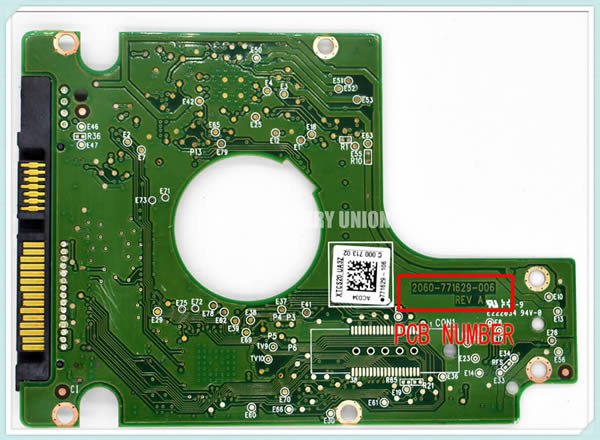

Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-*** on the board. The following picture shows the board number of 2060-771629-006 Western Digital PCB.

2060-771629-006 Western Digital PCB Board Number

2060-771629-006 Western Digital PCB: BIOS Chip

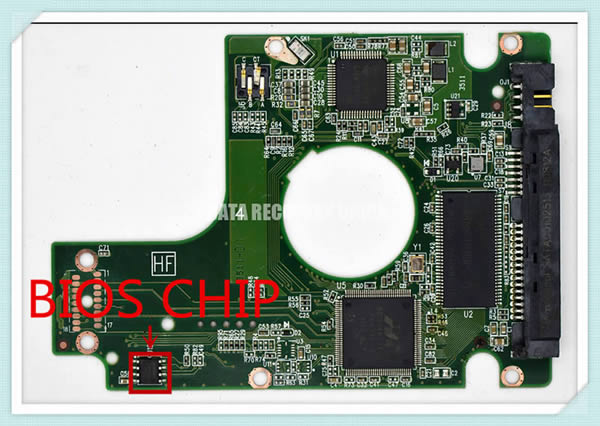

The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-771629-006 Western Digital PCB.

2060-771629-006 Western Digital PCB BIOS Chip.

BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.

PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers

2060-771629-006 Western Digital PCB: Repair Video

The following video from YOUTUBE shows the repair process of 2060-771629-006 Western Digital PCB.

2060-771629-006 Western Digital PCB: PCB Supplier

HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 2060-771629-006 on it, good luck!
