HDD Printed circuit board (PCB) with board number 2060-771640-002 is usually used on these Western Digital hard disk drives:
- WD5000AAKS-00V1A0, DCM HGNNHTJCGN, Western Digital 500GB SATA 3.5 Hard Drive;
- WD10EADS-65M2B1, DCM DBNNNT2MAB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD3200AAKS-00V6A0, DCM HHRNHTJMAN, Western Digital 320GB SATA 3.5 Hard Drive;
- WD1001FALS-00Y6A0, DCM HARNHTJAAB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-41Y6A1, DCM HARNHTJAAB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-41Y6A1, DCM HARNNTJCAB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD5000AAKS-007AA0, DCM HBRNHTJABB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-40V6A0, DCM HHNNHTJMHN, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-40V6A0, DCM HARNHTJCGN, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5001AALS-00E3A0, DCM EARNNTJABB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD1001FALS-41Y6A0, DCM HANCNTJAAB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD3200AAKS-00V6A0, DCM HGRNHTJAGN, Western Digital 320GB SATA 3.5 Hard Drive;
- WD7501AAES-60Z2A0, DCM EANNHTJAAB, Western Digital 750GB SATA 3.5 Hard Drive;
- WD1001FALS-40Y6A0, DCM HARNHTJCBB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EADS-65P6B0, DCM HANCNT2MGB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-40Y6A0, DCM HANNHTJAAB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FAES-60Z2A0, DCM HBNNHTJABB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-40Y6A0, DCM HHRNNTJAHB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-40Y6A0, DCM HHRNHTJAAB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-00Y6A0, DCM HANNNTJAA, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-00Y6A0, DCM HARNHTJAA, Western Digital 1TB SATA 3.5 Hard Drive;
- WD5000AAKS-00V6A0, DCM HHNNHTJMHN, Western Digital 500GB SATA 3.5 Hard Drive;
- WD10EADS-65M2B1, DCM HBNNNT2MGB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD2500AAKS-00V6A0, DCM DANNNTJMHN, Western Digital 250GB SATA 3.5 Hard Drive;
- WD3200AAKS-00V6A0, DCM HARNNTJAGN, Western Digital 320GB SATA 3.5 Hard Drive;
- WD1001FALS-40Y6A0, DCM HHRNNTJABB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD5000AAKS-40V6A0, DCM HGNNNTJCAN, Western Digital 500GB SATA 3.5 Hard Drive;
- WD1001FALS-40Y6A0, DCM HHRNHTJAHB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-40Y6A0, DCM HBNNHTJABB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-41Y6A0, DCM HANNNTJCBB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EADS-00M2B0, DCM HARNHV2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-41Y6A1, DCM HBRNHTJABB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-41Y6A0, DCM HANNHTJAAB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EADS-00M2B0, DCM HHRNHV2MGB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD5000AAKS-40V6A0, DCM HGRNNTJAHN, Western Digital 500GB SATA 3.5 Hard Drive;
- WD10EADS-00M2B0, DCM HARNHT2MAB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-41Y6A0, DCM HARNNTJCBB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EADS-65P6B0, DCM HGNNHT2MBB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EADS-65P6B0, DCM HBRCHV2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-41Y6A1, DCM HBRNHTJCHB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD5000AAKS-40V6A0, DCM HGNNHTJAGN, Western Digital 500GB SATA 3.5 Hard Drive;
- WD1001FALS-40Y6A0, DCM HBNNHTJCBB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-40Y6A0, DCM HBNNNTJAAB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-00Y6A0, DCM HANNHTJAAB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EADS-65P6B0, DCM HHRCNV2CAB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD5000AAKS-40V6A0, DCM HANNNTJCHN, Western Digital 500GB SATA 3.5 Hard Drive;
- WD10EADS-65P6B0, DCM HHRCNV2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-40Y6A0, DCM HARNNTJAAB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD5000AAKS-007AA0, DCM HHNNHTJAAB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD10EADS-65P6B0, DCM HHNCNT2MHB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FAES-60Z2A0, DCM EBRNNTJCAB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-41Y6A0, DCM HARNHTJAAB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-41Y6A0, DCM HANNHTJABB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-41Y6A0, DCM HANNNTJAAB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-41Y6A1, DCM HBRNNTJAAB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD5001AALS-00E3A0, DCM HARNHTJCAB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD1001FALS-40Y6A0, DCM HARNHTJABB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EADS-65P6B0, DCM DGNNHT2MAB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EADS-65P6B0, DCM DBNNHT2MBB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1001FALS-00E3A0, DCM HANNHTJCH, Western Digital 1TB SATA 3.5 Hard Drive;
- WD3200AAKS-00V6A0, DCM HGRNNTJAGN, Western Digital 320GB SATA 3.5 Hard Drive;
- WD1001FALS-41Y6A1, DCM HBNNHTJABB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD5000AAKS-40V6A0, DCM HGNNNTJAAN, Western Digital 500GB SATA 3.5 Hard Drive
The 2060-771640-002 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.

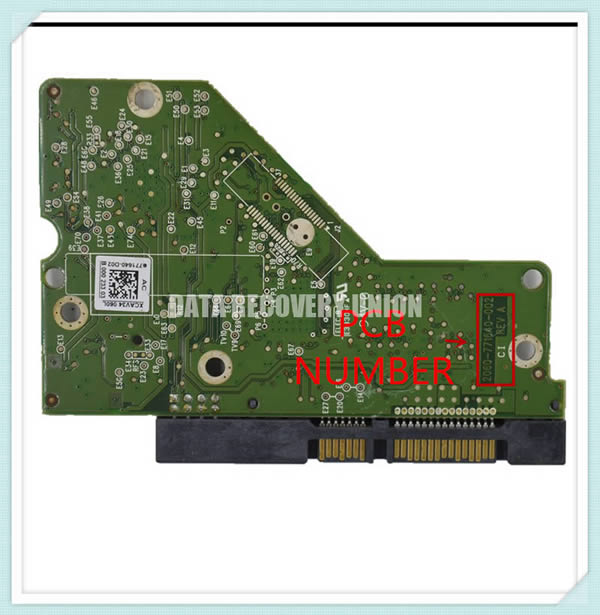

2060-771640-002 Western Digital PCB: Board Number
Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-*** on the board. The following picture shows the board number of 2060-771640-002 Western Digital PCB.

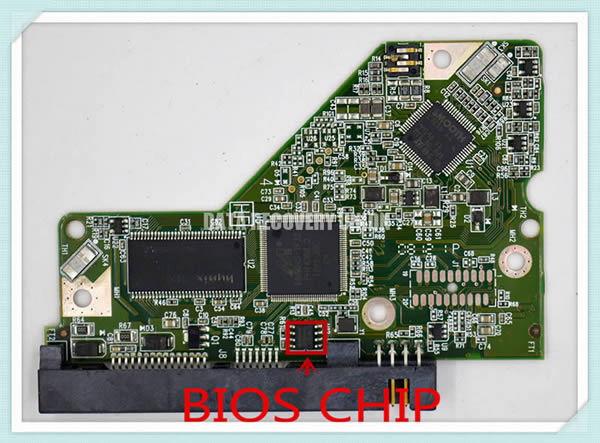

2060-771640-002 Western Digital PCB: BIOS Chip
The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-771640-002 Western Digital PCB.
.
BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.
PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers
2060-771640-002 Western Digital PCB: Repair Video
The following video from YOUTUBE shows the repair process of 2060-771640-002 Western Digital PCB.
2060-771640-002 Western Digital PCB: PCB Supplier
HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 2060-771640-002 on it, good luck!
