HDD Printed circuit board (PCB) with board number 2060-771801-002 is usually used on these Western Digital hard disk drives:
- WD5000BMVW-11S5XS0, DCM HHCVJHN, Western Digital 500GB USB 2.5 Hard Drive;
- WD10JMVW-11S5XS0, DCM SHMVJHK, Western Digital 1TB USB 2.5 Hard Drive;
- WD20NMVW-11W68S0, DCM HBCVJHBB, Western Digital 2TB USB 2.5 Hard Drive;
- WD10JMVW-11S5XS0, DCM HBCVJHN, Western Digital 1TB USB 2.5 Hard Drive;
- WD7500BMVW-11S5XS1, DCM HBOVJBN, Western Digital 750GB USB 2.5 Hard Drive;
- WD10JMVW-11S5XS0, DCM HHCVJHNB, Western Digital 1TB USB 2.5 Hard Drive;
- WD10JMVW-11S5XS0, DCM HHCVJHB, Western Digital 1TB USB 2.5 Hard Drive;
- WD5000BMVW-11S5XS0, DCM EBCVJBB, Western Digital 500GB USB 2.5 Hard Drive;
- WD5000BMVW-11S5XS1, DCM EBMTJHN, Western Digital 500GB USB 2.5 Hard Drive;
- WD10JMVW-11S5XS1, DCM HBMTJBK, Western Digital 1TB USB 2.5 Hard Drive;
- WD3200BMVW-11S5XS0, DCM HBCVJHKB, Western Digital 320GB USB 2.5 Hard Drive;
- WD15NMVW-11W68S0, DCM EBOTJHKB, Western Digital 1.5TB USB 2.5 Hard Drive;
- WD5000BMVW-11S5XS0, DCM EBOTJHK, Western Digital 500GB USB 2.5 Hard Drive;
- WD10JMVW-11S5XS1, DCM SBMTJHK, Western Digital 1TB USB 2.5 Hard Drive;
- WD5000BMVW-11S5XS0, DCM EHCVJHBB, Western Digital 500GB USB 2.5 Hard Drive;
- WD20NMVW-11W68S0, DCM EHKTJHKB, Western Digital 2TB USB 2.5 Hard Drive;
- WD10JMVW-11S5XS1, DCM EHOTJHN, Western Digital 1TB USB 2.5 Hard Drive;
- WD5000BMVW-11S5XS0, DCM HCMTJHN, Western Digital 500GB USB 2.5 Hard Drive;
- WD7500BMVW-11S5XS1, DCM EBOTJBK, Western Digital 750GB USB 2.5 Hard Drive;
- WD10JMVW-11S5XS0, DCM EBCVJHNB, Western Digital 1TB USB 2.5 Hard Drive;
- WD10JMVW-11S5XS0, DCM EHCVJHN, Western Digital 1TB USB 2.5 Hard Drive;
- WD5000BMVW-11S5XS0, DCM HHCVJHNB, Western Digital 500GB USB 2.5 Hard Drive;
- WD10JMVW-11S5XS0, DCM EHCVJBBB, Western Digital 1TB USB 2.5 Hard Drive;
- WD10JMVW-11S5XS0, DCM EHCVJHBB, Western Digital 1TB USB 2.5 Hard Drive;
- WD20NMVW-11W68S0, DCM EBCVJHBB, Western Digital 2TB USB 2.5 Hard Drive;
- WD5000BMVW-11S5XS0, DCM EBCTJBN, Western Digital 500GB USB 2.5 Hard Drive;
- WD10JMVW-11S5XS1, DCM HHCVJHN, Western Digital 1TB USB 2.5 Hard Drive;
- WD10JMVW-11S5XS0, DCM EHCTJCB, Western Digital 1TB USB 2.5 Hard Drive;
- WD10JMVW-11S5XS1, DCM SHMTJHN, Western Digital 1TB USB 2.5 Hard Drive;
- WD5000BMVW-11S5XS0, DCM HBCVJHB, Western Digital 500GB USB 2.5 Hard Drive;
- WD15NMVW-11W68S0, DCM EHOVJBKB, Western Digital 1.5TB USB 2.5 Hard Drive;
- WD5000BMVW-11S5XS0, DCM EHOTJHB, Western Digital 500GB USB 2.5 Hard Drive;
- WD10JMVW-11S5XS1, DCM EBOTJHK, Western Digital 1TB USB 2.5 Hard Drive
The 2060-771801-002 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.
2060-771801-002 Western Digital PCB: Board Number

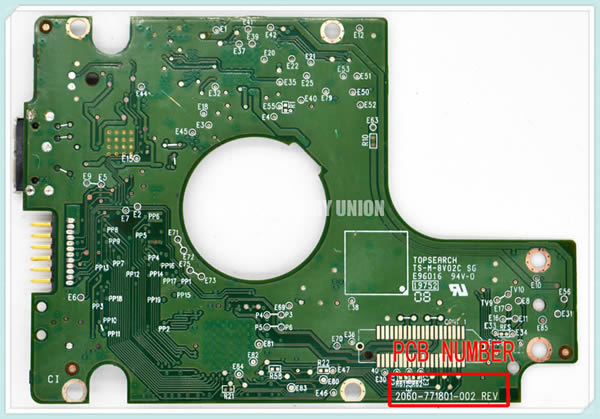

Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-*** on the board. The following picture shows the board number of 2060-771801-002 Western Digital PCB.
2060-771801-002 Western Digital PCB: BIOS Chip

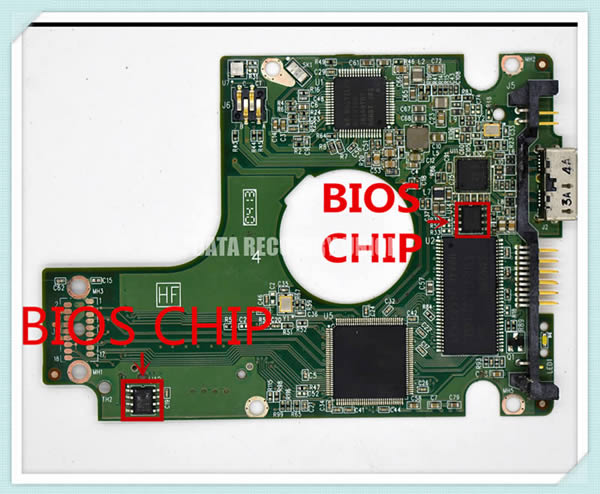

The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-771801-002 Western Digital PCB.
.
BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.
PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers
2060-771801-002 Western Digital PCB: Repair Video
The following video from YOUTUBE shows the repair process of 2060-771801-002 Western Digital PCB.
2060-771801-002 Western Digital PCB: PCB Supplier
HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 2060-771801-002 on it, good luck!
