HDD Printed circuit board (PCB) with board number 2060-771829-004 is usually used on these Western Digital hard disk drives:
- WD10EZEX-08M2NA0, DCM EANNHT2MHB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1003FZEX-00MK2A0, DCM DANNKT2MG, Western Digital 1TB SATA 3.5 Hard Drive;
- WD5000AZLX-00CL5A0, DCM EHRNNT2MHB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD10EZEX-00BN5A0, DCM EHRNHT2CG, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EZEX-21M2NA0, DCM EGRNNT2MEB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EZEX-75M2NA0, DCM EHRNNT2MHB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1003FZEX-00MK2A0, DCM HBNNHT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EZEX-08M2NA0, DCM DGRNNT2CH, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EZEX-21M2NA0, DCM EGNNNT2MHB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD5003AZEX-00MK2A0, DCM DANNKT2CHB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD10EZEX-22BN5A0, DCM DGRNNT2CH, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EZEX-00BN5A0, DCM EANMHT2MEB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EZEX-00BN5A0, DCM DBRNKT2MHB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EZEX-08M2NA0, DCM EGRNKT2CH, Western Digital 1TB SATA 3.5 Hard Drive;
- WD5000AZLX-00CL5A0, DCM EHRNHT2CH, Western Digital 500GB SATA 3.5 Hard Drive;
- WD10EZEX-00BN5A0, DCM DGRNHT2CH, Western Digital 1TB SATA 3.5 Hard Drive;
- WD5000AZLX-00CL5A0, DCM DHRNKT2AH, Western Digital 500GB SATA 3.5 Hard Drive;
- WD10EZEX-00BN5A0, DCM HHNMHT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD5000AZLX-00CL5A0, DCM EHRNNT2MGB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD10EZEX-21M2NA0, DCM EHNNHT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EZEX-21M2NA0, DCM EANNKT2MEB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD5003AZEX-00MK2A0, DCM EARNHT2AH, Western Digital 500GB SATA 3.5 Hard Drive;
- WD10EZEX-21M2NA0, DCM DHRNKT2MHB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EZEX-75M2NA0, DCM DHRNHT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EZEX-08M2NA0, DCM EARNHT2MGB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EZEX-21M2NA0, DCM EGNNNT2AGB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EZEX-00BN5A0, DCM EANNNT2CH, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EZEX-75M2NA0, DCM HARMHT2CEB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EZEX-08M2NA0, DCM EHRNKT2CH, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EZEX-22BN5A0, DCM DGNNKT2MG, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EZEX-21M2NA0, DCM EANMNT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD1003FZEX-00MK2A0, DCM DBNNKT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD10EZEX-22BN5A0, DCM DARNKT2CG, Western Digital 1TB SATA 3.5 Hard Drive;
- WD7500AZEX-00BN5A0, DCM EBRNHT2CG, Western Digital 750GB SATA 3.5 Hard Drive;
- WD10EZEX-75M2NA0, DCM EHNNHT2MEB, Western Digital 1TB SATA 3.5 Hard Drive;
- WD5003AZEX-00MK2A0, DCM DHRNHT2CG, Western Digital 500GB SATA 3.5 Hard Drive;
- WD10EZEX-00BN5A0, DCM DARNHT2CG, Western Digital 1TB SATA 3.5 Hard Drive
The 2060-771829-004 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.
2060-771829-004 Western Digital PCB: Board Number

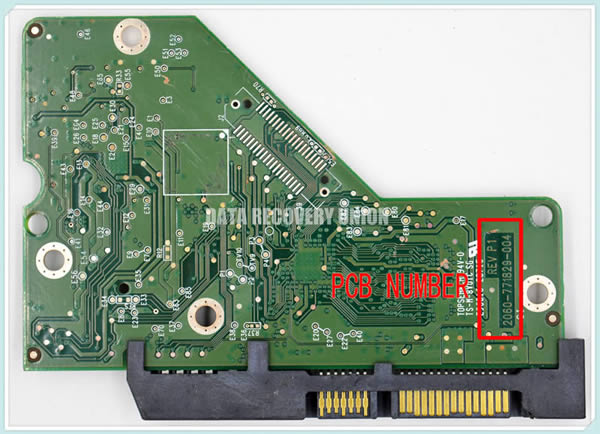

Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-*** on the board. The following picture shows the board number of 2060-771829-004 Western Digital PCB.
2060-771829-004 Western Digital PCB: BIOS Chip
The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-771829-004 Western Digital PCB.
.
BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.
PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers
2060-771829-004 Western Digital PCB: Repair Video
The following video from YOUTUBE shows the repair process of 2060-771829-004 Western Digital PCB.
2060-771829-004 Western Digital PCB: PCB Supplier
HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 2060-771829-004 on it, good luck!
