2060-771829-005 WD PCB Circuit Board

DATARECOVERYUNION.COM014 mins

HDD Printed circuit board (PCB) with board number 2060-771829-005 is usually used on these Western Digital hard disk drives:

  • WD1003FZEX-00MK2A0, DCM EBNNHT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-22BN5A0, DCM DARNHT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-00BN5A0, DCM HANCHT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-22BN5A0, DCM DHNNHT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-60M2NA0, DCM EBNMHT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD5003AZEX-00MK2A0, DCM HBNMHT2AHB, Western Digital 500GB SATA 3.5 Hard Drive;
  • WD1003FZEX-00MK2A0, DCM HHRMHT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-60M2NA0, DCM HARNHT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-00BN5A0, DCM DHNNKT2AEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD1003FZEX-00MK2A0, DCM HARMNT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD1003FZEX-00MK2A0, DCM HHNNHT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD5000AZLX-00CL5A0, DCM HANNHT2CHB, Western Digital 500GB SATA 3.5 Hard Drive;
  • WD10EZEX-60M2NA0, DCM DHRMHT2AEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD5000AZLX-00CL5A0, DCM DHNNHT2MHB, Western Digital 500GB SATA 3.5 Hard Drive;
  • WD10EZEX-60M2NA0, DCM DARNKT2MEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-08M2NA0, DCM HANNHT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-21M2NA0, DCM HARMNT2CH, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-22BN5A0, DCM HHRNHT2MHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-00BN5A0, DCM EANNHT2MHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-00BN5A0, DCM EBNNHT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-00BN5A0, DCM DHRNKT2MGB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD5003AZEX-00MK2A0, DCM HHNMNT2CHB, Western Digital 500GB SATA 3.5 Hard Drive;
  • WD10EZEX-07M2NA0, DCM HHNMHT2CGB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-08M2NA0, DCM HHNNKT2CH, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-75M2NA0, DCM DARNKT2AEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-08M2NA0, DCM DANMHT2CH, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-00BN5A0, DCM HHNMHT2CE, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-08M2NA0, DCM HANMHT2AEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-22BN5A0, DCM HARMHT2MHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-21M2NA0, DCM HANNHT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-60M2NA0, DCM DBRNKT2AEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-75M2NA0, DCM DANNKT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-08Y20A0, DCM HBRNNT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-08M2NA0, DCM HHRNKT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-08M2NA0, DCM DHRNKT2CH, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-75M2NA0, DCM HHNNNT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD5000AZLX-00CL5A0, DCM DHRMHT2AHB, Western Digital 500GB SATA 3.5 Hard Drive;
  • WD10EZEX-08M2NA0, DCM DHNMKT2MHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-60M2NA0, DCM HANNKT2AEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-00BN5A0, DCM HBNNHT2CEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-75M2NA0, DCM HHNMKT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-75M2NA0, DCM HHNMKT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD1003FZEX-00MK2A0, DCM DARNKT2MEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-08M2NA0, DCM EHRNKT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-21M2NA0, DCM HANMHT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-08M2NA0, DCM EARMHT2CH, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-00BN5A0, DCM DHNNKT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-22BN5A0, DCM EHNMHT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-08M2NA0, DCM HBNNKT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD5000AZLX-00ZR6A0, DCM DANNNT2CH, Western Digital 500GB SATA 3.5 Hard Drive;
  • WD10EZEX-21M2NA0, DCM DARNKT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-00BN5A0, DCM DANNHT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-60M2NA0, DCM HHRNKT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-08M2NA0, DCM DHRNHT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-60M2NA0, DCM HGRMNT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-08M2NA0, DCM HBNNHT2AEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-60M2NA0, DCM DHNMHT2AEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD1003FZEX-00MK2A0, DCM EANNNT2MGB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-60M2NA0, DCM HARNKT2AEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-75M2NA0, DCM DGNNNT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD1003FZEX-00MK2A0, DCM HHRNHT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-60M2NA0, DCM HHRMHT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD5000AZLX-00CL5A0, DCM HHNMNT2MHB, Western Digital 500GB SATA 3.5 Hard Drive;
  • WD10EZEX-00BN5A0, DCM HANNNT2CH, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-75M2NA0, DCM EANNHT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-08M2NA0, DCM DARNHT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD5000AZLX-00CL5A0, DCM DHRNHT2MHB, Western Digital 500GB SATA 3.5 Hard Drive;
  • WD10EZEX-22BN5A0, DCM HHNMKT2MHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-75M2NA0, DCM HANNKT2CEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-08M2NA0, DCM HHNNHT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-08M2NA0, DCM DHRNKT2AEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-08Y20A0, DCM HARMNT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-00BN5A0, DCM DARNKT2AEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-08M2NA0, DCM HANMHT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-60M2NA0, DCM DHRMHT2MHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-00M2NA0, DCM EBRNHT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-08M2NA0, DCM HHNMHTJCH, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-75M2NA0, DCM HHNNHT2CEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-00BN5A0, DCM DHNNHT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-75M2NA0, DCM DBRNKT2CEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-75M2NA0, DCM HHRMKT2CEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD5000AZLX-00CL5A0, DCM HBNNHT2CHB, Western Digital 500GB SATA 3.5 Hard Drive;
  • WD1003FZEX-00MK2A0, DCM HHNMHT2CEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-21M2NA0, DCM HANMKT2CHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-60M2NA0, DCM DHRNKT2AEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD5000AZLX-00CL5A0, DCM DARNKT2MHB, Western Digital 500GB SATA 3.5 Hard Drive;
  • WD10EZEX-08M2NA0, DCM DHRNHT2MEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD10EZEX-21M2NA0, DCM HBNNHT2AHB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD5003AZEX-00MK2A0, DCM HHRNHT2CHB, Western Digital 500GB SATA 3.5 Hard Drive

The 2060-771829-005 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.

2060-771829-005 Western Digital PCB: Board Number

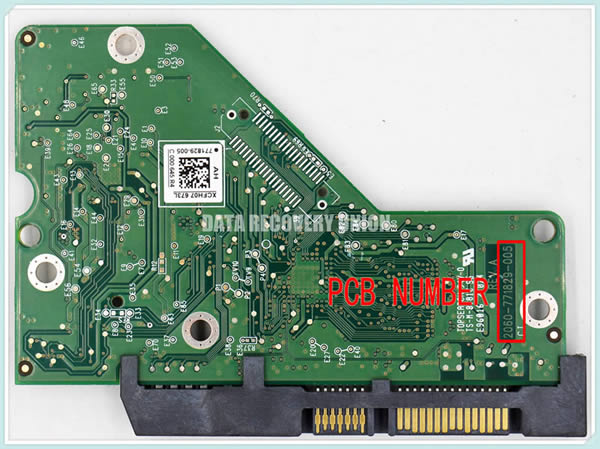

Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-*** on the board. The following picture shows the board number of 2060-771829-005 Western Digital PCB.

2060-771829-005 Western Digital PCB Board Number

2060-771829-005 Western Digital PCB: BIOS Chip

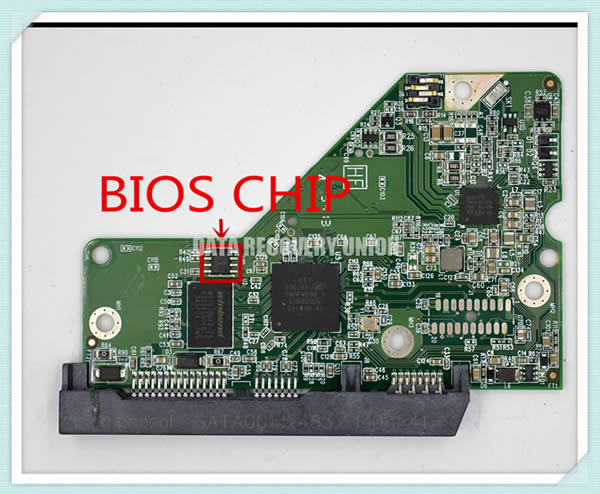

The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-771829-005 Western Digital PCB.

2060-771829-005 Western Digital PCB BIOS Chip.

BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.

PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers

2060-771829-005 Western Digital PCB: Repair Video

The following video from YOUTUBE shows the repair process of 2060-771829-005 Western Digital PCB.

2060-771829-005 Western Digital PCB: PCB Supplier

HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 2060-771829-005 on it, good luck!
