HDD Printed circuit board (PCB) with board number 2060-771852-001 is usually used on these Western Digital hard disk drives:
- WD5000LPVT-22G33T0, DCM HACVJBBB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-22G33T0, DCM HHOTJAB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-22G33T0, DCM HHOTJHB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-22G33T0, DCM HHOTJABB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-22G33T0, DCM HBCVJANB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-22G33T0, DCM HHCVJHBB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-22G33T0, DCM HHOTJANB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-60G33T0, DCM HHCTJBB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-75G33T0, DCM HHCVJANB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD3200LPVT-22G33T0, DCM HACVJAB, Western Digital 320GB SATA 2.5 Hard Drive;
- WD3200LPVT-00G33T0, DCM HACVJBN, Western Digital 320GB SATA 2.5 Hard Drive;
- WD5000LPVT-75G33T0, DCM HBOTJBB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-22G33T0, DCM HACTJAB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-75G33T0, DCM HACVJHBB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-22G33T0, DCM HBCTJANB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-75G33T0, DCM HHCTJAB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-80G33T2, DCM HHCTJHBB, Western Digital 500 GB SATA 2.5 Hard Drive;
- WD5000LPVT-75G33T0, DCM HBCVJBBB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-22G33T0, DCM HHCVJHNB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-22G33T0, DCM HACTJBBB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-75G33T0, DCM HHCVJBBB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-80G33T2, DCM HACTJHNB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD2500LPVT-00G33T0, DCM HBOTJBB, Western Digital 250GB SATA 2.5 Hard Drive;
- WD5000LPVT-75G33T0, DCM HHOTJHB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-22G33T0, DCM HHCVJBBB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-75G33T0, DCM HHOTJAB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD3200LPVT-35G33T0, DCM HBCVJBN, Western Digital 320GB SATA 2.5 Hard Drive;
- WD5000LPVT-00G33T0, DCM HBCVJBB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-75G33T0, DCM HHCTJBBB, Western Digital 500GB SATA 2.5 Hard Drive;
- WD5000LPVT-75G33T0, DCM HHOTJBB, Western Digital 500GB SATA 2.5 Hard Drive
The 2060-771852-001 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.
2060-771852-001 Western Digital PCB: Board Number

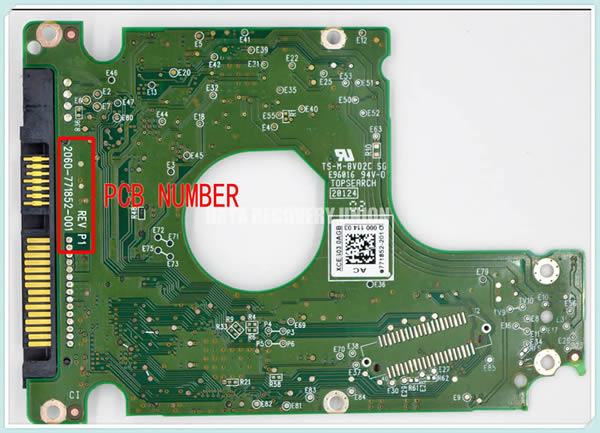

Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-*** on the board. The following picture shows the board number of 2060-771852-001 Western Digital PCB.
2060-771852-001 Western Digital PCB: BIOS Chip

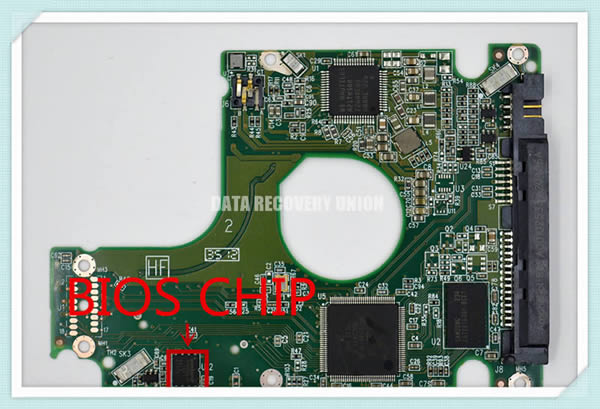

The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-771852-001 Western Digital PCB.
.
BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.
PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers
2060-771852-001 Western Digital PCB: Repair Video
The following video from YOUTUBE shows the repair process of 2060-771852-001 Western Digital PCB.
2060-771852-001 Western Digital PCB: PCB Supplier
HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 2060-771852-001 on it, good luck!
