2060-771945-002 WD PCB Circuit Board

DATARECOVERYUNION.COM016 mins

HDD Printed circuit board (PCB) with board number 2060-771945-002 is usually used on these Western Digital hard disk drives:

  • WD20EZRX-00D8PB0, DCM HHRNHTJMHB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20PURZ-85GU6Y0, DCM HARNNTJMAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HANNNTJMHB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD30EFRX-68EUZN0, DCM DARNHTJCA, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD40EZRZ-00WN9B0, DCM HANNHT2CAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD30EFRX-68EUZN0, DCM HARNHTJCA, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD30PURX-64P6ZY0, DCM HARNKT2MH, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD20EZRX-22D8PB0, DCM HHNNKTJMHB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HHRNKTJCAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20EZRZ-00Z5HB0, DCM HHRNHTJMAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD40EFRX-68WT0N0, DCM HANNNT2MAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD20EZRZ-00Z5HB0, DCM HHRNKT2MHB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20EZRZ-00Z5HB0, DCM HHNNHTJMHB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD40EZRX-00SPEB0, DCM HANNHT2MAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD40EZRZ-00WN9B0, DCM HANNNT2MHB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HANCKT2MAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD30EFRX-68EUZN0, DCM DHNNNT2MAB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD40EFRX-68WT0N0, DCM HARNNT2MAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD30EFRX-68EUZN0, DCM HARNNTJCA, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD40EZRX-00SPEB0, DCM HARNHT2CAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD30PURX-64P6ZY0, DCM HHNNNTJCAB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD30EFRX-68EUZN0, DCM HHNNKT2MAB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD20EZRZ-00Z5HB0, DCM HARNKTJMAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD30EURX-63T0FY0, DCM HHNNHT2MHB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD30EFRX-68EUZN0, DCM HARNNT2MHB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD30EFRX-68EUZN0, DCM HHRNKT2CHB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD30EZRZ-00Z5HB0, DCM HHRNHT2MA, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD30EFRX-68EUZN0, DCM HANNKT2CHB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HHNCKT2CHB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HARNNT2MHB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD40EFRX-68WT0N0, DCM HHNNNT2MHB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD30EFRX-68EUZN0, DCM HARNNTJMAB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD20EZRZ-00Z5HB0, DCM HHRNHT2CAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20EZRZ-00Z5HB0, DCM HANNNT2MAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD40EFRX-68WT0N0, DCM HHRNNT2CHB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD40EZRZ-00WN9B0, DCM HANNNTJCHB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD40EZRX-00SPEB0, DCM HARNHT2MAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM DHRNNT2MHB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD30EZRX-00SPEB0, DCM HANNHT2CAB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD20EZRZ-00Z5HB0, DCM HHNNHT2MHB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20EZRX-60D8PB0, DCM HARNHT2MAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HANNNT2CAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20EZRZ-00Z5HB0, DCM HANNNTJCAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HHNNNT2CHB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HARNNT2MAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HHRNNT2MAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD30EZRX-00SPEB0, DCM HARNNTJCAB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD40EZRZ-00WN9B0, DCM HANNHT2MHB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD40EFRX-68WT0N0, DCM HANNNT2CHB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HHNNNT2CAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD40EFRX-68WT0N0, DCM HANNNTJMAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD20EZRZ-00Z5HB0, DCM HHRNHTJCAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD40EZRZ-00WN9B0, DCM HANNNT2CAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD40EZRX-00SPEB0, DCM HARNNT2MAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD30PURZ-85GU6Y0, DCM HHRNKT2CHB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HHNNHTJCAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20EZRZ-00Z5HB0, DCM HHRNHT2CHB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD40EFRX-68WT0N0, DCM HARNNT2CAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD20EZRX-00D8PB0, DCM HHNNHT2CAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD30EFRX-68EUZN0, DCM HHRNNTJCHB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD20EZRZ-00Z5HB0, DCM HARNHT2CAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20PURZ-85GU6Y0, DCM HARCKTJMHB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HARNKT2MHB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD30EFRX-68EUZN0, DCM HHRNNTJCH, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM DARNNT2CAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD40EFRX-68WT0N0, DCM HANNNTJMHB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD40EZRX-00SPEB0, DCM HANNHT2CAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD40EZRX-19SPEB0, DCM HARNHT2CAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD40PURX-64GVNY0, DCM HARNHT2CAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD30EFRX-68EUZN0, DCM HHRNNTJMHB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HHNNNTJCAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD30EURX-63T0FY0, DCM HHRNHT2CAB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD40EZRZ-00WN9B0, DCM HARNNT2CAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HANNNT2MHB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD40EURX-64WRWY0, DCM HANNHT2CAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD40EZRX-22SPEB0, DCM HANNHT2MAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HANNKT2CAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20PURX-64P6ZY0, DCM HARNKTJCH, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD40EFRX-68WT0N0, DCM HARNNT2CHB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD30EFRX-68EUZN0, DCM HARNNT2CHB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD20EZRZ-00Z5HB0, DCM HARNKTJMHB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD40PURX-64GVNY0, DCM HHNNHT2MAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD30EFRX-68EUZN0, DCM HANNKT2MHB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD30EZRZ-00Z5HB0, DCM HARNHT2MHB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD40EFRX-68WT0N0, DCM HANNNTJCAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HHNNNT2MHB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20EZRZ-00Z5HB0, DCM HARNHT2MAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD30EZRX-00D8PB0, DCM HHRNNT2MA, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD40PURX-64GVNY0, DCM HARNNT2MAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HARCKT2CAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD40EFRX-68WT0N0, DCM HARNNTJMHB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD10EFRX-68PJCN0, DCM DHNNKT2CEB, Western Digital 1TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HANNKT2MAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20EZRZ-00Z5HB0, DCM HHNNNT2MAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD30PURX-64P6ZY0, DCM HHRNKTJMH, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD30EFRX-68EUZN0, DCM HHRCKT2CHB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD40PURX-64GVNY0, DCM HHNNHT2CHB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HANNNTJCAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD40EZRX-00SPEB0, DCM HANNHTJCAB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD40EFRX-68WT0N0, DCM HANNNT2MHB, Western Digital 4TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HARNNT2CAB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD30EZRZ-00Z5HB0, DCM HANNHT2MAB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD30EZRZ-00Z5HB0, DCM HHNNHT2MHB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD20EZRX-22D8PB0, DCM HANNHT2CHB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD30EZRZ-00Z5HB0, DCM HARNHT2CHB, Western Digital 3TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HANNKT2MHB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20EFRX-68EUZN0, DCM HHNNKTJMHB, Western Digital 2TB SATA 3.5 Hard Drive;
  • WD20EZRZ-00Z5HB0, DCM HHNNKT2CHB, Western Digital 2TB SATA 3.5 Hard Drive

The 2060-771945-002 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.

2060-771945-002 Western Digital PCB: Board Number

Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-*** on the board. The following picture shows the board number of 2060-771945-002 Western Digital PCB.

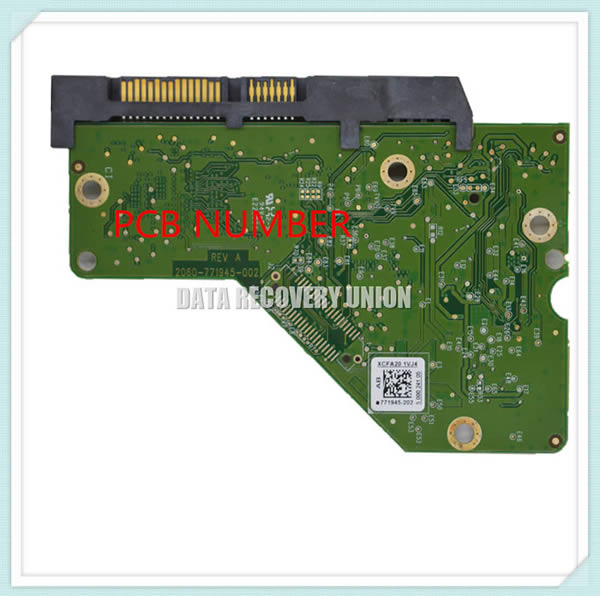

2060-771945-002 Western Digital PCB Board Number

2060-771945-002 Western Digital PCB: BIOS Chip

The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-771945-002 Western Digital PCB.

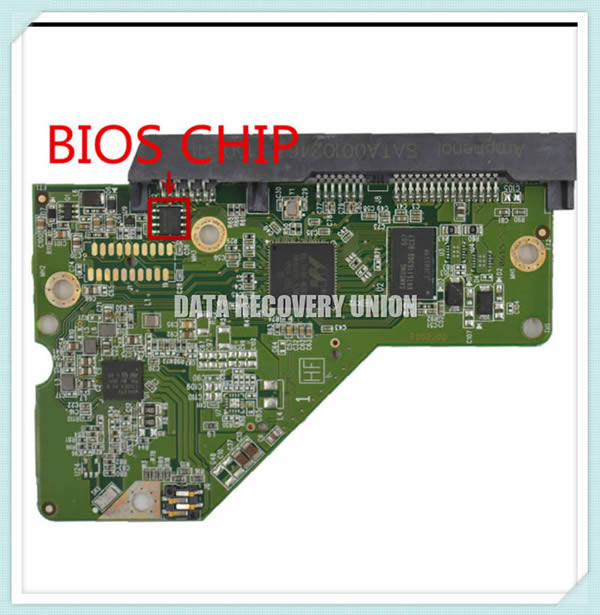

2060-771945-002 Western Digital PCB BIOS Chip.

BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.

PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers

2060-771945-002 Western Digital PCB: Repair Video

The following video from YOUTUBE shows the repair process of 2060-771945-002 Western Digital PCB.

2060-771945-002 Western Digital PCB: PCB Supplier

HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 2060-771945-002 on it, good luck!
