HDD Printed circuit board (PCB) with board number 2060-800018-001 is usually used on these Western Digital hard disk drives:
- WD5000LPLX-75ZNTT0, DCM HHNTJHK, Western Digital 500GB SATA 2.5″ Hard Drive;
- WD3200LPLX-75ZNTT0, DCM HAOTJHB, Western Digital 320GB SATA 2.5″ Hard Drive;
- WD3200LPLX-75ZNTT0, DCM EAOTJAK, Western Digital 320GB SATA 2.5″ Hard Drive;
- WD5000LPLX-75ZNTT0, DCM HANTJAK, Western Digital 500GB SATA 2.5″ Hard Drive;
- WD5000LPLX-00ZNTT0, DCM HAOTJBK, Western Digital 500GB SATA 2.5″ Hard Drive;
- WD3200LPLX-00ZNTT0, DCM HHNTJHK, Western Digital 320GB SATA 2.5″ Hard Drive;
- WD3200LPLX-75ZNTT0, DCM HAOTJAB, Western Digital 320GB SATA 2.5″ Hard Drive;
- WD5000LPLX-60ZNTT1, DCM HHNTJHB, Western Digital 500GB SATA 2.5″ Hard Drive;
- WD3200LPLX-75ZNTT0, DCM HBOTJBK, Western Digital 320GB SATA 2.5″ Hard Drive;
- WD3200LPLX-66ZNTT0, DCM HHOTJAB, Western Digital 320GB SATA 2.5″ Hard Drive;
- WD5000LPLX-00ZNTT0, DCM HAOTJVK, Western Digital 500GB SATA 2.5″ Hard Drive;
- WD5000LPLX-75ZNTT0, DCM HANTJAB, Western Digital 500GB SATA 2.5″ Hard Drive;
- WD5000LPLX-75ZNTT0, DCM EBOTJVK, Western Digital 500GB SATA 2.5″ Hard Drive;
- WD5000LPLX-75ZNTT0, DCM HANTJAN, Western Digital 500GB SATA 2.5″ Hard Drive;
- WD5000LPLX-75ZNTT0, DCM EHOTJAK, Western Digital 500GB SATA 2.5″ Hard Drive;
- WD3200LPLX-75ZNTT0, DCM HAOT2AB, Western Digital 320GB SATA 2.5″ Hard Drive;
- WD3200LPLX-75ZNTT0, DCM HBOTJAK, Western Digital 320GB SATA 2.5″ Hard Drive;
- WD5000LPLX-08ZNTT0, DCM EAOT2AK, Western Digital 500GB SATA 2.5″ Hard Drive;
- WD5000LPLX-08ZNTT0, DCM HHOT2HK, Western Digital 500GB SATA 2.5″ Hard Drive;
- WD3200LPLX-75ZNTT0, DCM HHOTJBK, Western Digital 320GB SATA 2.5″ Hard Drive;
- WD5000LPLX-60ZNTT0, DCM HVOTJVK, Western Digital 500GB SATA 2.5″ Hard Drive;
- WD5000LPLX-75ZNTT0, DCM HBNTJAK, Western Digital 500GB SATA 2.5″ Hard Drive;
- WD3200LPLX-75ZNTT0, DCM HHOTJHB, Western Digital 320GB SATA 2.5″ Hard Drive;
- WD5000LPLX-75ZNTT0, DCM EBOTJBK, Western Digital 500GB SATA 2.5″ Hard Drive;
- WD5000LPLX-60ZNTT1, DCM EVOTJHK, Western Digital 500GB SATA 3.5″ Hard Drive;
- WD3200LPLX-75ZNTT0, DCM HHOTJAK, Western Digital 320GB SATA 2.5″ Hard Drive;
- WD3200LPLX-75ZNTT0, DCM EHOTJHK, Western Digital 320GB SATA 2.5″ Hard Drive;
- WD5000LPLX-60ZNTT1, DCM HHNTJHK, Western Digital 500GB SATA 2.5″ Hard Drive;
- WD3200LPLX-75ZNTT0, DCM HHOTJAB, Western Digital 320GB SATA 2.5″ Hard Drive;
- WD3200LPLX-75ZNTT0, DCM HBOTJVK, Western Digital 320GB SATA 2.5″ Hard Drive;
- WD5000LPLX-75ZNTT0, DCM HHNTJABB, Western Digital 500GB SATA 2.5″ Hard Drive
The 2060-800018-001 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.
2060-800018-001 Western Digital PCB: Board Number

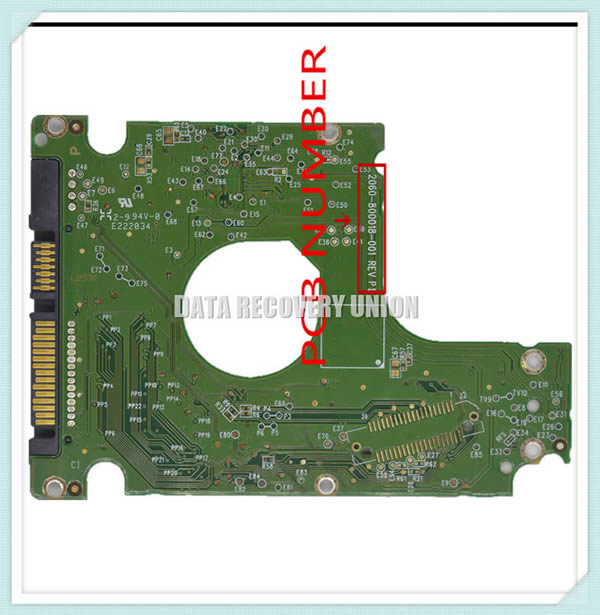

Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-” on the board. The following picture shows the board number of 2060-800018-001 Western Digital PCB.
2060-800018-001 Western Digital PCB: BIOS Chip

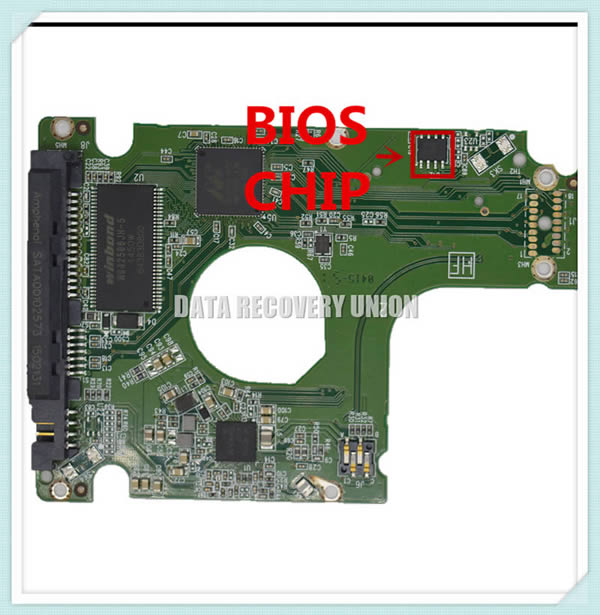

The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-800018-001 Western Digital PCB.
.
BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.
PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers
2060-800018-001 Western Digital PCB: Repair Video
The following video from YOUTUBE shows the repair process of 2060-800018-001 Western Digital PCB.
2060-800018-001 Western Digital PCB: PCB Supplier
HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 2060-800018-001 on it, good luck!
