BF41-00095A Samsung PCB Circuit Board

DATARECOVERYUNION.COM05 mins

HDD Printed circuit board (PCB) with board number BF41-00095A is usually used on these Samsung hard disk drives:

  • HD160JJ/P, HD160JJ/P, FW 100-51, P/V SFN, Samsung 160GB SATA 3.5 Hard Drive;
  • HD160JJ/P, HD160JJ/D, FW ZM100-34, P80SDT, Samsung 160GB SATA 3.5 Hard Drive;
  • HD080HJ, HD080HJ, FW 100-33, P/V MS, Samsung 80GB SATA 3.5 Hard Drive;
  • HD160JJ, HD160JJ/OMD, FW ZM100-47, P80SDT, Samsung 160GB SATA 3.5 Hard Drive;
  • HD160JJ/P, HD160JJ/P, FW 100-36, P/V FS, Samsung 160GB SATA 3.5 Hard Drive;
  • HD160JJ/P, HD160JJ/P, FW 100-34, P/V FS, Samsung 160GB SATA 3.5 Hard Drive;
  • HD160JJ/P, HD160JJ/B, FW 100-51, P/V SFN, Samsung 160GB SATA 3.5 Hard Drive;
  • HD160JJ/P, HD160JJ/P, FW ZM100-34, P/V FS, Samsung 160GB SATA 3.5 Hard Drive;
  • HD160JJ/P, HD160JJ/P, FW 100-46, P/V SFN, Samsung 160GB SATA 3.5 Hard Drive;
  • HD080HJ, HD080HJ, FW 100-33, P/V SFN, Samsung 80GB SATA 3.5 Hard Drive;
  • HD160JJ, HD160JJ, FW WU100-33, P/V SFN, Samsung 160GB SATA 3.5 Hard Drive;
  • HD160JJ/P, HD160JJ/P, FW 100-38, P/V FS, Samsung 160GB SATA 3.5 Hard Drive;
  • HD160JJ/P, HD160JJ/P, FW 100-38, P80SDT, Samsung 160GB SATA 3.5 Hard Drive

The BF41-00095A Samsung PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.

BF41-00095A Samsung PCB: Board Number

Finding a donor Samsung PCB board is easy, you just need to open the hard drive and find the board number like “BF41-*** on the board. The following picture shows the board number of BF41-00095A Samsung PCB.

BF41-00095A Samsung PCB Board Number

BF41-00095A Samsung PCB: BIOS Chip

The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of BF41-00095A Samsung PCB.

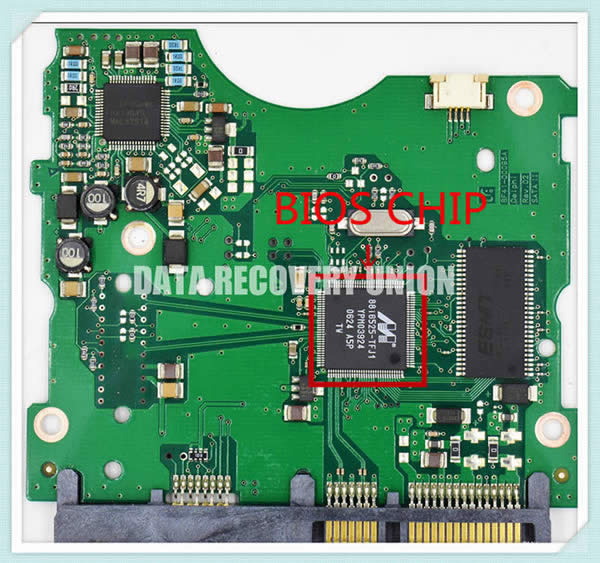

BF41-00095A Samsung PCB BIOS Chip.

BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.

PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers

BF41-00095A Samsung PCB: Repair Video

The following video from YOUTUBE shows the repair process of BF41-00095A Samsung PCB.

BF41-00095A Samsung PCB: PCB Supplier

HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number BF41-00095A on it, good luck!
