HDD Printed circuit board (PCB) with board number G002825A is usually used on these Toshiba hard disk drives:

  • MK3276GSX, A0/GS001A, HDD2J94 C SL01 B, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK2576GSX, A0/GS001C, HDD2J95 F VL01 T, Toshiba 250GB SATA 2.5 Hard Drive;
  • MK6459GSXP, A0/GT001H, HDD2J52 S QG01 B, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK3259GSXP, A0/GN003J, HDD2J54 E UL01 S, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK7559GSXP, A0/GN001C, HDD2J51 F VL01 B, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK3259GSXP, A0/GN003J, HDD2J54 E UL01 B, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK3276GSX, A0/GS001A, HDD2J94 C SL01 T, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK3275GSX, A0/GT001M, HDD2L04 B UL01 S, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK5065GSXF, C0/GV108B, HDD2L13 P TN01 T, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK7559GSXPW, A0/GT001A, HDD2J51 W RL01 T, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK5065GSXF, A0/GV105B, HDD2L13 P TN90 B, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK5076GSX, GS002D, HDD2J93 D UL02 T, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK6459GSXP, A0/GN003J, HDD2J52 E UL01 S, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK7575GSX, A0/GT001U, HDD2L01 Z SL01 B, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK7559GSXP, A0/GT001H, HDD2J51 S QG01 S, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK6476GSX, A0/GS001M, HDD2J92 B UL01 T, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK5075GSX, A0/GT001U, HDD2L03 Z SL01 B, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK6476GSX, A0/GS001C, HDD2J92 F VL01 T, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK6476GSX, A0/GS001C, HDD2J92 F VL01 B, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK6459GSXP, B0/GT102H, HDD2J52 S QJ02 S, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK3276GSX, GS002D, HDD2J94 D UL02 T, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK2565GSX, C0/GJ104E, HDD2L35 M FL01 T, Toshiba 250GB SATA 2.5 Hard Drive;
  • MK5059GSXP, A0/GT001H, HDD2J53 S QG01 S, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK3276GSX, A0/GS001M, HDD2J94 B UL01 T, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK5059GSXP, A0/GT001H, HDD2J53 S QG01 B, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK3275GSX, GT002D, HDD2L04 D UL02 T, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK6476GSX, A0/GS001A, HDD2J92 A SL01 T, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK5076GSX, A0/GS001C, HDD2J93 F VL01 B, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK7559GSXP, A0/GN001H, HDD2J51 S QL01 T, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK1059GSMP, A0/GU001C, HDD2K61 F VL01 T, Toshiba 1TB SATA 2.5 Hard Drive;
  • MK5059GSXP, A0/GN001A, HDD2J53 A SL01 B, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK3275GSX, A0/GT001U, HDD2L04 Z SL01 T, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK5065GSX, C0/GJ104E, HDD2L33 M FL01 T, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK5059GSXPW, A0/GT001A, HDD2J53 W RL01 T, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK3276GSX, A0/GS101X, HDD2J94 R SL01 T, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK1676GSX, A0/GS001A, HDD2J96 A SL01 B, Toshiba 160GB SATA 2.5 Hard Drive;
  • MK1676GSX, GS002D, HDD2J96 D UL02 B, Toshiba 160GB SATA 2.5 Hard Drive;
  • MK5075GSX, A0/GT001M, HDD2L03 B UL01 S, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK6476GSX, A0/GS001M, HDD2J92 B UL01 S, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK5059GSXP, A0/GN001U, HDD2J53 Z SL01 S, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK6476GSX, A0/GS001C, HDD2J92 F VL01 S, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK5076GSX, A0/GS001C, HDD2J93 F VL01 S, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK1676GSX, A0/GS001Z, HDD2J96 Q SL01 T, Toshiba 160GB SATA 2.5 Hard Drive;
  • MK7575GSX, A0GT001M, HDD2L01 B UL01 T, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK7575GSX, A0/GT001C, HDD2L01 F VL01 T, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK7559GSXF, C0/GQ108B, HDD2J60 P TN01 T, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK5075GSX, A0/GT001U, HDD2L03 Z SL01 T, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK7559GSXP, C0/GN003J, HDD2J51 R UL01 T, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK7575GSX, A0/GT001M, HDD2L01 B UL01 T, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK6475GSX, A0/GT001M, HDD2L02 B UL01 B, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK7559GSXP, A0/GN001C, HDD2J51 F VL01 S, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK7575GSX, A0/GT001E, HDD2L01 M FL01 T, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK2576GSX, GS001D, HDD2J95 D UL01 B, Toshiba 250GB SATA 2.5 Hard Drive;
  • MK7559GSXF, A0/GQ201B, HDD2J60 P TM01 T, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK3276GSX, GS002D, HDD2J94 D UL01 T, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK6459GSXP, A0/GN003J, HDD2J52 E UL01 T, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK3276GSX, A0/GS001C, HDD2J94 F VL01 S, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK6475GSX, GT002D, HDD2L02 D UL02 B, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK2559GSXP, A0/GN003J, HDD2J55 E UL01 T, Toshiba 250GB SATA 2.5 Hard Drive;
  • MK5076GSX, GS002D, HDD2J93 D UL02 B, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK5059GSXP, A0/GN001U, HDD2J53 Z SL01 T, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK6476GSX, GS002D, HDD2J92 D UL02 T, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK5059GSXP, A0/GT001H, HDD2J53 S QG01 T, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK1676GSX, A0/GS001Y, HDD2J96 H ZK01 T, Toshiba 160GB SATA 2.5 Hard Drive;
  • MK5076GSX, A0/GS001A, HDD2J93 A SL01 T, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK7575GSX, A0/GT001C, HDD2L01 F VL01 B, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK2576GSX, A0/GS001A, HDD2J95 U TL01 T, Toshiba 250GB SATA 2.5 Hard Drive;
  • MK7575GSX, A0/GT001M, HDD2L01 B UL01 S, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK5075GSX, A0/GT001M, HDD2L03 B UL01 T, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK1676GSX, A0/GS001A, HDD2J96 A SL01 T, Toshiba 160GB SATA 2.5 Hard Drive;
  • MK5076GSX, A0/GS001A, HDD2J93 U TL01 B, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK2576GSX, A0/GS001A, HDD2J95 A SL01 T, Toshiba 250GB SATA 2.5 Hard Drive;
  • MK2576GSX, GS002D, HDD2J95 D UL02 T, Toshiba 250GB SATA 2.5 Hard Drive;
  • MK3276GSX, A0/GS001C, HDD2J94 F VL01 B, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK1059GSM, A0/GU001U, HDD2K51 Z SL01 T, Toshiba 1TB SATA 2.5 Hard Drive;
  • MK5075GSX, A0/GT001U, HDD2L03 Z SD01 T, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK5076GSX, A0/GS001C, HDD2J93 F VL01 T, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK3265GSX, C0/GJ104E, HDD2L34 M FL01 T, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK3276GSX, A0/GS001A, HDD2J94 A SL01 T, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK5059GSXP, A0/GN001A, HDD2J53 A SL01 T, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK3259GSXP, A0/GT001H, HDD2J54 S QG01 B, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK3275GSX, A0/GT001M, HDD2L04 B UL01 T, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK6475GSX, A0/GT001M, HDD2L02 B UL01 S, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK5076GSX, A0/GS001A, HDD2J93 C SL01 S, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK1676GSX, GS002D, HDD2J96 D UL02 T, Toshiba 160GB SATA 2.5 Hard Drive;
  • MK1676GSX, A0/GS001Y, HDD2J96 H ZK01 B, Toshiba 160GB SATA 2.5 Hard Drive;
  • MK1676GSX, A0/GS001A, HDD2J96 C SL01 T, Toshiba 160GB SATA 2.5 Hard Drive;
  • MK2559GSXP, A0/GN003J, HDD2J55 E UL01 B, Toshiba 250GB SATA 2.5 Hard Drive;
  • MK7559GSXP, A0/GN001M, HDD2J51 B UL01 T, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK3259GSXP, A0/GN003J, HDD2J54 E UL01 T, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK3276GSX, A0/GS001Y, HDD2J94 H ZK01 B, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK6459GSXP, A0/GT001H, HDD2J52 S QG01 S, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK3275GSX, A0/GT001M, HDD2L04 B UL01 B, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK6459GSXPW, A0/GT001A, HDD2J52 W RL01 T, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK2575GSX, A0/GT001Z, HDD2L05 Q SL01 T, Toshiba 250GB SATA 2.5 Hard Drive;
  • MK6459GSXP, A0/GN003J, HDD2J52 E UL01 B, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK7575GSX, A0/GT001C, HDD2L01 F VL01 S, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK5065GSXF, A0/GV201B, HDD2L13 P TM01 T, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK5076GSX, A0/GS001U, HDD2J93 Z SL01 T, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK3276GSX, A0/GS001C, HDD2J94 F VL01 T, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK7575GSX, GT002D, HDD2L01 D UL02 T, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK2575GSX, A0/GT001M, HDD2L05 B UL01 B, Toshiba 250GB SATA 2.5 Hard Drive;
  • MK5065GSX, A0/GJ205E, HDD2L33 M UL01 T, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK2559GSXP, A0/GN001A, HDD2J55 A SL01 T, Toshiba 250GB SATA 2.5 Hard Drive;
  • MK7559GSXF, E0/GQ005B, HDD2J60 P TV01 T, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK7559GSXF, F0/GQ006B, HDD2J60 P TV02 T, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK5075GSX, A0/GT001R, HDD2L03 J ZZ01 T, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK6459GSXP, A0/GT001H, HDD2J52 S QG01 T, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK5075GSX, A0/GT001M, HDD2L03 B UL01 B, Toshiba 500GB SATA 2.5 Hard Drive;
  • MK1059GSM, A0/GU001U, HDD2K51 Z SD01 S, Toshiba 1TB SATA 2.5 Hard Drive;
  • MK2575GSX, A0/GT001M, HDD2L05 B UL01 T, Toshiba 250GB SATA 2.5 Hard Drive;
  • MK6475GSX, A0/GT001M, HDD2L02 B UL01 T, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK3275GSX, GT002D, HDD2L04 D UL02 B, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK3276GSX, A0/GS001Y, HDD2J94 H ZK01 T, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK7559GSXP, C0/GN003J, HDD2J51 E UL01 T, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK3259GSXP, A0/GN001A, HDD2J54 A SL01 T, Toshiba 320GB SATA 2.5 Hard Drive;
  • MK7559GSXP, A0/GN001C, HDD2J51 F VL01 T, Toshiba 750GB SATA 2.5 Hard Drive;
  • MK6475GSX, GT002D, HDD2L02 D UL02 T, Toshiba 640GB SATA 2.5 Hard Drive;
  • MK2576GSX, GS002D, HDD2J95 D UL02 B, Toshiba 250GB SATA 2.5 Hard Drive;
  • MK5059GSXP, A0/GN003J, HDD2J53 E UL01 T, Toshiba 500GB SATA 2.5 Hard Drive

The G002825A Toshiba PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.

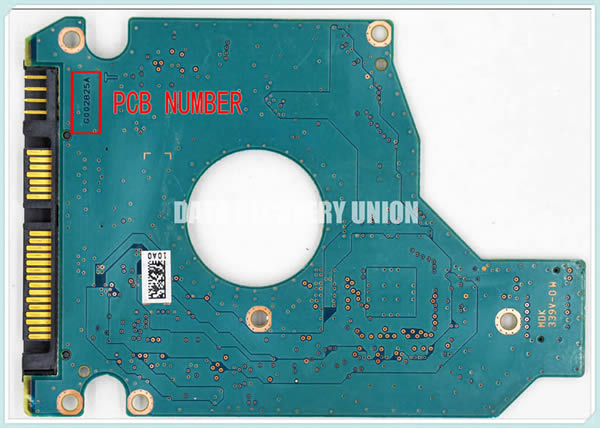

G002825A Toshiba PCB: Board Number

Finding a donor Toshiba PCB board is easy, you just need to open the hard drive and find the board number like “G00*** on the board. The following picture shows the board number of G002825A Toshiba PCB.

G002825A Toshiba PCB Board Number

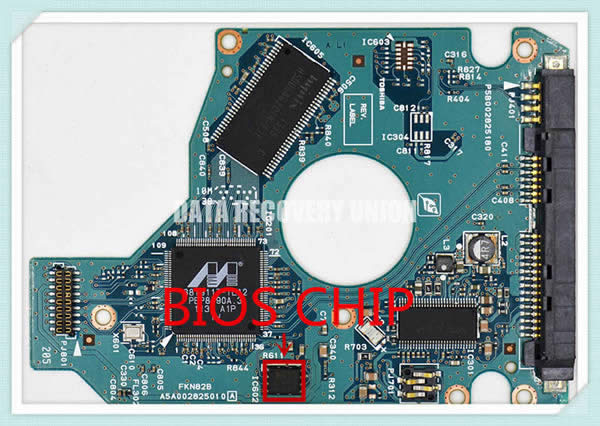

G002825A Toshiba PCB: BIOS Chip

The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of G002825A Toshiba PCB.

G002825A Toshiba PCB BIOS Chip.

BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.

PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers

G002825A Toshiba PCB: Repair Video

The following video from YOUTUBE shows the repair process of G002825A Toshiba PCB.

G002825A Toshiba PCB: PCB Supplier

HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number G002825A on it, good luck!
