Hard Disk Details(5)

DATARECOVERYUNION.COM010 mins

Slide 2221: When the drive is manufactured it is known that there is going to be errors in every drive.  Drives use ECC to correct most errors and if ECC can correct the error then the sector is never marked as bad.  If it is marked as bad, the drive puts the data in a bad block list. Most people know that their hard drive has a bad block table. What most people do not know is that their drive has TWO bad block tables.
1.    P-List (Primary Defects List – manufacture defect info that does not change)
2.    G-List (Grown Defects Lists – sector relocation table)

The G-List is where the bad blocks that your drive has on a daily basis are stored. Since the P-List is done at manufacturing time that list is never suppose to change. There is a very important reason to know about both lists in a low level recovery which I will explain when we get to the repair section. There are certain utilities that can read, delete, merge and change this data.

ECC Notes and Issues

ECC structured redundancy up to 200 bits of 256/512 in a sector-CRC–Scrambled Bits- RLL adds bits to cause pulses and Parity When data is written to the drive it is encoded. The actual data itself is never written, only the interpretation of the data. If you are thinking that a drive contains 0’s and 1’s then you are thinking about it incorrectly. The data is more like a wave form being written to the drive. It has to be interpreted back on its way out before it becomes a 0 or a 1. Before the data is written the data is randomized. This eliminates patterns that might be the same so that ECC is not confused. It is difficult to do pattern detection on a pattern that appears over and over. EMI can be reduced and have less effect on the bit storage and the timing controls.

The drive tries several different ways to re-read the data before giving up, most of them using ECC. It is possible for ECC to improperly correct data under certain circumstances if the data occurs in a certain order. ECC read commands use ODD numbering of at least 3 so as not to cause a 50/50 chance in the selection of 2.

Read ignoring ECC is an LBA 28 command “Read Long” and it was disabled in 48 bits as it was determined to be obsolete in drives over 137 gigs. No Read Ignore ECC is available after 137 gigs. Standard attempts are tried and usually are 10 tries in most hard drives. Reading a drive ignoring ECC can cause possible corruption in the data, but sometimes it is the only way to get the data in those sectors if there is a problem with the PCB or the ECC cannot read the data correctly.

If the Sector is determined to be unreadable by the ECC encoder then the sector is retried again. Reed Solomon in conjunction with sector rereads is expecting to fix data errors for the ECC. Parity bits are stripped off.

Slide 2422: The cylinder structure is extremely important because there are people believe they can just take the platters out and move them to a new drive. This is true you can do this, but you have to move all platters simultaneously. The reason is because data is written in a cylinder.  Most people have heard the term cylinder in reference to their hard drive, but they have no idea what that means. Writing in a cylinder means that data is written in parallel due to the fact the heads are always moving together in the same stack.  To make it more efficient data is written on the top of a platter and the bottom of the platter and the next platters and so on, at the same time.  Your data is NOT written on the top of one platter and when that gets full then written to the next platter. It is written across all the platters at the same time, making a cylinder of your data.

Most data recovery software will scan an entire hard drive and then display a list of files and directory trees you can recover from. However, if there is a lot of damage to the drive, the scanning may never finish or it might die/kill it in the process. If you have smart software and you can figure out where your partitions start and where the MFT or FAT tables might be, you stand a better chance of getting the data you are looking for.  If a standard utility was used to create the partition then the partition structure will begin on a cylinder boundary. Again, your partition will begin on a Cylinder Boundary. Software like Byteback (www.byteback.org) RecoverSoft Media Tools Pro (www.recoversoft.com), and Runtimes Disk Explorer (www.runtime.org) are smart enough to know the data exists on the cylinder boundary and will quickly check without you have to scan the whole hard drive and possibly saving your drive from disaster during the scan. There certainly are times that scanning will be required but it is best if you can avoid it except in an imaging process.

Slide 2585: The MR (magnetoresistive) head of the hard drive you can think of as the head of the 90’s. If you remember how reliable the drives were before 2000 it is mostly because of this head and the density of the platters.  This head was used on drives mostly before we crossed the 10-20 gig barriers. The MR head could determine if a bit passed under it.  When data passed parallel to the head, the head could detect the “MR Effect” due to movement of electrons causing the magnetic field to rotate positive and negative values.

Read More

What the role of the computer in the forensics is?

DATARECOVERYUNION.COM04 mins

A computer can be the target of the crime, it can be the instrument of the crime, or it can serve as an evidence repository storing valuable information about the crime. In some cases, the computer can have multiple roles. It can be the “smoking gun” serving as the instrument of the crime. It can also serve as a file cabinet storing critical evidence. So when investigating a case, it is important to know what roles the computer played in the crime and then tailor the investigative process to that particular role.

In most cases, the computer forensics specialist will take several careful steps to identify and attempt to retrieve possible evidence that may exist on a subject computer system:

1. Protect the subject computer system during the forensic examination from any possible alteration, damage, data corruption, or virus introduction.

2. Discover all files on the subject system.This includes existing normal files, deleted yet remaining files, hidden files, password-protected files, and encrypted files.
3. Recover all (or as much as possible) of discovered deleted files.
4. Reveal (to the extent possible) the contentsof hidden files as well as temporary or swap files used by both the application programs and the operating system.
5. Accesses (if possible and if legally appropriate) the contents of protected or encrypted files.
6. Analyze all possibly relevant data found in special (and typically inaccessible) areas of a disk. This includes but is not limited to what is called unallocated space on a disk (currently unused, but possibly the repository of previous data that is relevant evidence), as well as slack space in a file (the remnant area at the end of a file, in the last assigned disk cluster, that is unused by current file data but once again may be a possible site for previously created and relevant evidence).

7. Print out an overall analysis of the subject computer system, as well as a listing of all possibly relevant files and discovered file data. Further, provide an opinion of the system layout; the file structures discovered; any discovered data and authorship information; any attempts to hide, delete, protect, or encrypt information; and anything else that has been discovered and appears to be relevant to the overall computer system examination.

8. Provide expert consultation and/or testimony as required.

Read More

Hard Disk Details(4)

DATARECOVERYUNION.COM14 mins

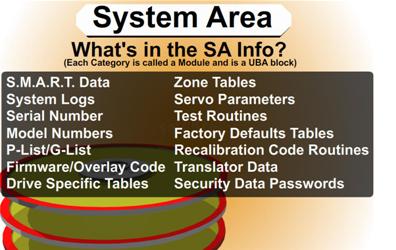

Slide 1781: What is in the System Area Info. Each category is called a Module and is a UBA block.

1.    Smart Data
2.    System Logs
3.    Serial Number
4.    Model Numbers
5.    P-List (Primary Defects List – i.e.: manufacture defect info that does not change)
6.    G-List (Grown Defects Lists – sector relocation table)
7.    Program Overlays – Firmware, Executable Code, or updates
8.    Specific Tables like RRO – (recalibrate repeatable run-out and head offsets)
9.    Zone Tables
10. Servo Parameters
11. Test Routines
12. Factory Defaults Tables
13. Recalibration Code Routines
14. Translator Data
a.    Converts Logical and Physical Address to locations on the drive
b.    Heads and Track Skewing Info
15. Security Data Passwords for drive – possible encrypted info.

System Area or System info notes
1.    Usually there are two or more copies on different platters of the drive
2.    Most of the time system info is on the Outer Tracks – Extreme Outer Edge
3.    If info is corrupt it can be copied from the second one to make the drive operable
4.    System Log Info can be written here
5.    SA – Not Uniformed or standard in any way,
6.    Completely different per drive and per drive family
7.    Can sometimes be copied from similar drives or drive families using special tools
8.    The smaller the amount of data stored in the SA, the more likely it is to replace with parts, PCB’s and heads.
**** PCB = Printed Circuit Boards

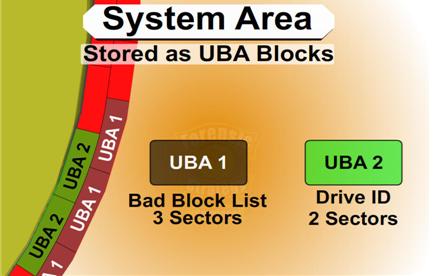

Slide 1816: The System Area is made of UBA Modules (Utility Block Addressing) which are sector blocks logically grouped together that contain a specific MODULE.  Each UBA block might be different per a drive manufacturer. The UBA # might be Smart Data on one drive and a different type of data on another drive. The UBA area is inaccessible over the standard interface. Most of the commands to talk to the UBA modules are vendor specific and which is generally not made publically available. There are certain pieces of hardware that can be used to communicate with this area such as the PC3000.

For example: In the UBA 1 Area it could be a Bad Block List.  As larger drives have been created there has been a need for larger bad block areas.  So this might be expanded from two sectors in a previous drive to three sectors in a newer drive. But the firmware for the drive can still refer to each of them as UBA 1 and does not have to have any changes made to the code in the firmware regardless of the size change.

Read More

Hard Disk Details (3)

DATARECOVERYUNION.COM05 mins

Slide 1289: The first thing a hard drive will do after it receives power is check for a return status from it’s chips to make sure the electronics are functioning. Then the drive will begin the self-check of its parts and wait for a return status. If both status checks are returned then the drive continues on to the next step and spin up the spindle.

Slide1389: The drive begins to spin the spindle or as you would see, the platters begin to revolve.  When the platters begin to revolve the air flow around the platter creates a force that is called an air bearing.  This air bearing will fling off debris on the platters such as any dust particles or metal fragments from the standard operation of the drive. This air bearing also causes the plastic locking arm mechanism to move out of the way as soon as there is enough air flow for the head to float. Without that airflow the arm is locked in place and will not move over the platter. This is a way to protect the platter from the head touching the platter and causing physical damage. The opposite is true during a power down. When power is cut to the drive, during the last revolutions of the motor, it generates enough power to move the head back to it park position.  Because of this, as you can imagine,  if you get enough power on and power off cycles in a row it is possible for the head to be stuck in the center of the platter and never to be parked correctly causing several types of damage. In certain 80 gig laptop 2.5″ inch drives it is common for the head to be stuck to the center of the platter, never having parked and keeping the platters from spinning. In most cases there is very little damage if the drive is opened and manually turned slow enough not to damage the head, and the data can be recovered, obviously never using this drive again.

Slide 1483: At this point, if the all has proceeded correctly the air bearing will allow the head to float over the platter allowing it to move freely without scratching the surface of the platter.

Slide 1545: At this point, if the head is reading the Servo Timing info from the platter and relaying it to the circuitry so the controller knows the geographic information for the placement of data.  (See previous speech at Defcon 14 for discussion about Voice Coil and stepping motors to understand the servo info).

Slide 1679: At this point the head moves to the System Area (SA) of the platters and reads the content that it requires as well as any additional firmware and overlays.
Most of the time, the system area is on the outer tracks – the extreme outer edge. This is chosen by the manufacturer but is most common on the outside on 3.5 and is sometimes written to the inside tracks on a 2.5″ inch drive.

System Area Information Common Names

 1.      System Area
 2.      Maintenance Tracks
 3.      Negative Cylinders
 4.      Reserved Cylinders
 5.      Calibration Area
 6.      Initialization Area
 7.      Diskware

Read More

Hard Disk Details (2)

DATARECOVERYUNION.COM04 mins

The hard drive knows nothing about your files and is not aware in any way of the content. That is the job of the Operating System (OS from here on). When the OS asks for a file, the OS will request a logical block from the drive; the drive will translate that to the physical location in CHS. An example is that it might request data from Cylinder 2500 at head 2 located on sector 234. The drive has many spare sectors and sometimes spare tracks to be used to compensate for errors and relocation of data. NOTE: Look at $BadClus on a NTFS File system for what the OS thinks is bad.

In a previous speech here at Defcon 14, I gave the basic inner workings of a hard drive and several ways you can repair it. I am sure that you can get that previous speech on DVD, find it on the web, or on www.myharddrivedied.com and it will give you a large amount of info that I am not going to discuss here today.  Additionally, there is a whitepaper on the CD that includes more data and notes about repairing a hard drive.

Since my last speech one of the most common questions I get everyday is “What is that clicking noise? How do I fix it?” This is not a simple problem by any means.  So my goal today is to give you more insight into the inner workings your hard drive and explain how this problem occurs and what you might be able to do to fix it.

Slide 1208: In this speech we are looking at the platter assembly where the heads are located, through the area of the preamp and the IC Logic Board down to the PCB.  This is the area that affects what is causing the clicking noise that you hear.  I am now going to explain how each of these things works and walk you through the drive functions.

Part of what causes this clicking problem is related to the power on routine functions.

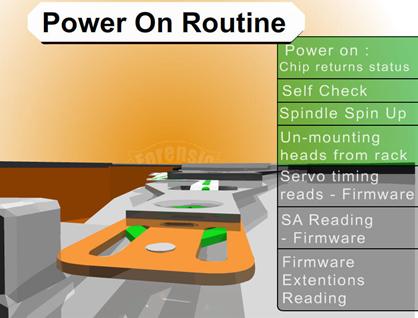

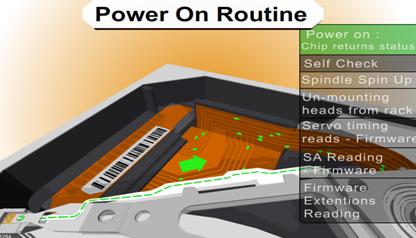

The boot sequence of a drive is as follows:
1.      Power on chip returns status
2.      Self check
3.      Spindle spin up
4.      Un-mounting heads from rack
5.      Servo timing reads – firmware
6.      SA reading – firmware
7.      Firmware extensions reading
8.      Error – read SA from other secondary copies

Read More

Hard Disk Details (1)

DATARECOVERYUNION.COM03 mins

Data recovery is necessary when source material fails and where no good backup exists, either Physical or Logical. There are two types of data recovery in the standard basic sense.  One type of data recovery is when there is damage to the media and the pre-existing data need to be retrieved. This will usually require the media to be repaired.

The second form of data recovery is when files were purposely or accidently deleted.  When this type of data recovery is necessary there is usually no damage to the media and standard software can be used to recover the data.  This is the process that most software performs. Very few software programs understand damaged media. Because most software relies on calls and functions from the operating system for its input, it has no control itself over error correction or any functions that the operating system performs on the drive. I believe there a four phases to any data recovery.

Four Phases of Recovery
1. Repair the Hard Drive so it is running in some form, usually requiring hardware or special equipment.

2. Image, Copy or recover the physical drive and sectors primarily by bitstream imaging. If the drive is functioning, it is possible to do this with software, however there are some hardware solutions that work very well; i.e. DeepSpar Disk Imager. This is a situation where some software is better than others, such as dd_rescue (use with dd_rhelp script) on a Linux system has a special feature that allow it to image backward (understanding why you need to image backwards is very important in data recovery).

3. Perform Logical Recovery of files, partition structures, or necessary items; usually this is by software and is the most common type of application sold.

4. Repair of files that might have existed in damaged space or sectors to recover what is possible.  This is usually the requirement in Forensics to be able to re-assemble data to display what was there, if whole or not. This is also applied in data recovery for corrupt Word and Excel documents.

Read More
