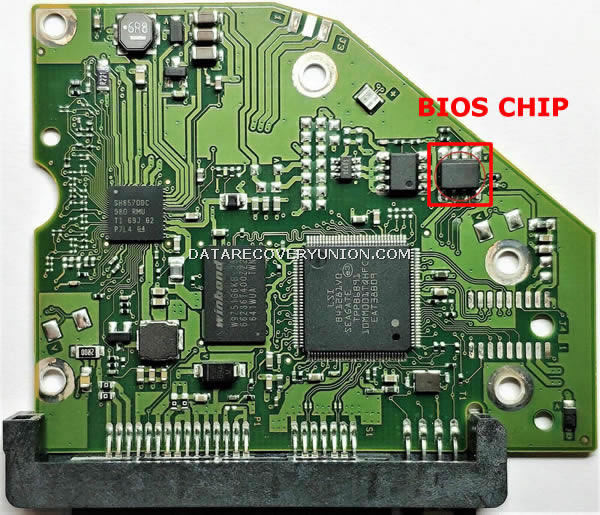

We first look at the following two pictures. Picture 1 is the “BIOS CHIP” of the circuit board. When we replace the PCB, we need to replace the “BIOS CHIP” with your original PCB.

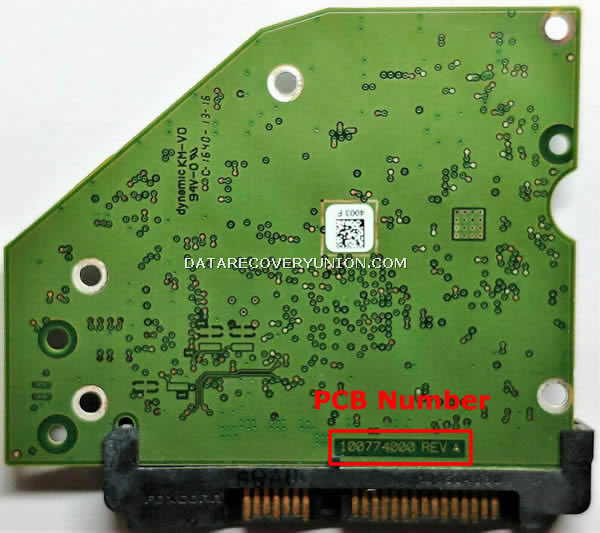

Picture 2 shows the “Board Number” of the board, and the “Board Number” must be the same!
FAQs of100774000 PCB
- Seagate Pharoah_oasis st500dm009 error LED:0x000000EE FAddr:
Solutions of100774000 PCB (Donor PCB)
- Seagate 100774000 PCB
- ST1000DM003 Seagate PCB 100774000
- ST1000DM010 Seagate PCB 100774000
- ST1000VM002 Seagate PCB 100774000
- ST1000VN002 Seagate PCB 100774000
- ST1000DM003 P/N: 1SB102-544 F/W: CC63 WU W9A Seagate 1TB
- ST500DM009 P/N: 2F110A-500 F/W: CC43 TK ZA4 Seagate BarraCuda 500GB
- ST500DM009 P/N: 2F110A-500 F/W: CC43 TK ZA4 Seagate 500GB
- ST1000DM003 P/N: 1SB102-022 F/W: HPH4 TK Z9A Seagate 1TB
- ST1000DM003 P/N: 1SB102-541 F/W: CC61 WU W9A Seagate 1TB
Note: When repairing a hard disk with a damaged circuit board, we must first ensure that the damage of the hard disk is caused by a circuit board failure. Usually it is relatively simple to replace the circuit board. The tools we need are heat guns, tweezers, etc., you can also find a local repair shop to help you complete this work.
