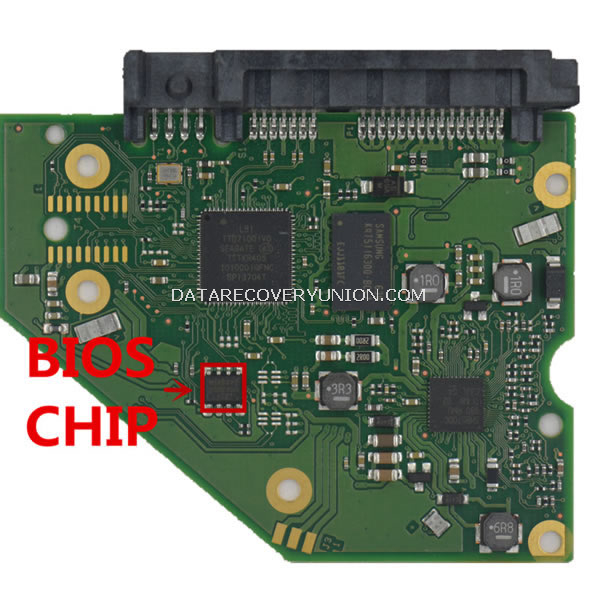

We first look at the following two pictures. Picture 1 is the “BIOS CHIP” of the circuit board. When we replace the PCB, we need to replace the “BIOS CHIP” with your original PCB.

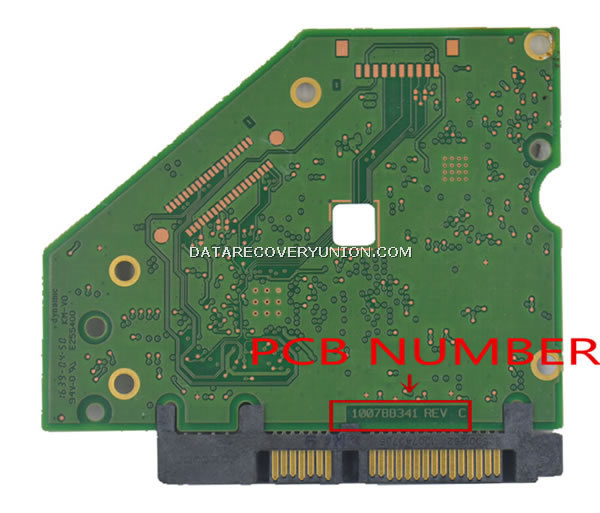

Picture 2 shows the “Board Number” of the board, and the “Board Number” must be the same!
FAQs of100788341 PCB
- Burnt harddrive pcb replacement
- Assistance needed with Data Recovery, Seagate 4tb Hard Drive
Solutions of100788341 PCB (Donor PCB)
- Seagate PCB 100788341
- ST3000DM003 Seagate PCB 100788341
- ST4000DM005 Seagate PCB 100788341
- ST4000VN008 Seagate PCB 100788341
- ST4000VX000 Seagate PCB 100788341
- ST4000DM005 P/N: 2DP166-500 F/W: 0001 WU WGY Seagate BarraCuda 4TB
- ST4000DM005 P/N: 2DP166-300 F/W: 0001 WU WGY Seagate 4TB
- ST4000DM005 P/N: 2DP166-500 F/W: 0001 TK ZDH Seagate BarraCuda 4TB
- ST4000DM005 P/N: 2DP166-300 F/W: 0001 TK ZGY BarraCuda Seagate 4TB
- ST4000DM005 P/N: 2DP166-300 F/W: 0001 TK ZDH BarraCuda Seagate 4TB
Note: When repairing a hard disk with a damaged circuit board, we must first ensure that the damage of the hard disk is caused by a circuit board failure. Usually it is relatively simple to replace the circuit board. The tools we need are heat guns, tweezers, etc., you can also find a local repair shop to help you complete this work.
