Seagate 100815597 PCB FAQs and Solutions

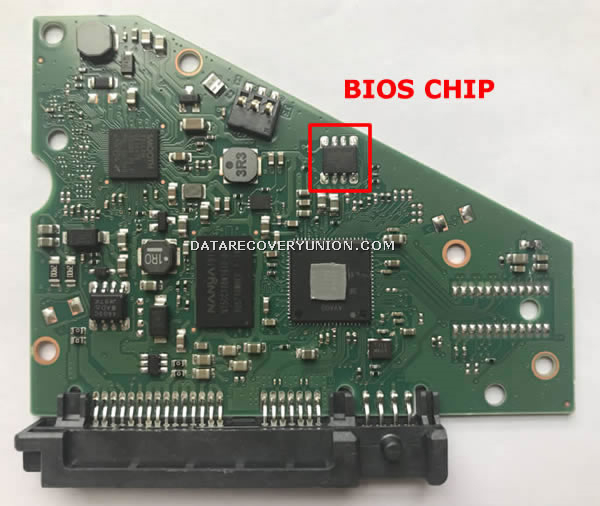

We first look at the following two pictures. Picture 1 is the “BIOS CHIP” of the circuit board. When we replace the PCB, we need to replace the “BIOS CHIP” with your original PCB.

BIOS CHIP

Picture 2 shows the “Board Number” of the board, and the “Board Number” must be the same!

PCB Number

FAQs of100815597 PCB

  • PSU fried the PCB on my Seagate HDD – looking to fix/replace/recover

Solutions of100815597 PCB (Donor PCB)

  • Seagate PCB 100815597
  • ST6000DM003 Seagate PCB 100815597
  • ST8000DM004 Seagate PCB 100815597
  • ST6000DM003 P/N: 2CY186-568 F/W: 0001 TK ZR1 Seagate Barracuda 6TB
  • ST8000DM004 P/N: 2CX188-300 F/W: 0001 TK ZR1 Seagate 8TB
  • ST6000DM003 P/N: 2CY186-300 F/W: 0001 TK ZCT Seagate 6TB
  • ST6000DM003 P/N: 2CY186-568 F/W: 0001 TK ZR1 Seagate 6TB
  • ST8000DM004 P/N: 2CX188-300 F/W: 0001 TK ZCT Seagate 8TB

Note: When repairing a hard disk with a damaged circuit board, we must first ensure that the damage of the hard disk is caused by a circuit board failure. Usually it is relatively simple to replace the circuit board. The tools we need are heat guns, tweezers, etc., you can also find a local repair shop to help you complete this work.
