Seagate Barracuda PCB

Seagate Barracuda PCB Swap Rescource

DATARECOVERYUNION.COM01 mins

For seagate hdd recovery maybe you need a matching donor pcb. Here is a list of Seagate Barracuda PCB rescource for your reference from HDDZone.com.

These files are in PDF, if you can not open them you can download a tool by click here:

Seagate Barracuda 7200.9 Circuit Boards

Seagate Barracuda 7200.10 Circuit Boards

Seagate Barracuda 7200.11 Circuit Boards

Seagate Barracuda 7200.12 Circuit Boards

HTML Sources:
Seagate Barracuda 7200.12 PCB

Seagate Barracuda 7200.11 PCB

Seagate Barracuda 7200.10 PCB

Seagate Barracuda 7200.9 PCB

Seagate Barracuda 7200.8 PCB

Seagate Barracuda 7200.7 PCB

If you are from a small recovery company you can download them on you computer for you hdd repair or data recovery needs.

Read More

Seagate 100466824 Barracuda 7200.11 PCB

DATARECOVERYUNION.COM02 mins

Swap 100466824 Seagate Barracuda 7200.11 PCB(Printed Circuit Boards) to recover your data from damaged HDD due to PCB failure. 100466824 is the board number on this PCB. If your HDD’s PCB has problems, the drive usually cannot boot up or there may be an inaccurate display in the BIOS of the hard drive’s information. Also power may not get to the hard drive and as a result it will not spin up.

Seagate 100466824 Barracuda 7200.11 PCB Board Details:

Board Number: 100466824
Main Controller IC: TTB5501D
Motor Combo IC: 100439116
Series: Seagate Barracuda 7200.11

Note: Hard drive failures are NOT always caused by circuit board failure.

Swap Seagate 100466824 Barracuda 11 PCB will not solve the problem below:

1. The hard drive will power up normally (no ticking noises, errors etc) but will not be recognized by the computer;
2. The hard drive will power up normally and be recognized correctly but will report a size of 0 bytes;
3. The hard drive will power up but report SMART errors on boot;

100466824 Seagate Barracuda 7200.11 PCB Photos:

Seagate 100466824 Barracuda 7200.11 PCB

Order Online: Seagate 100466824 Barracuda 7200.11 PCB

Read More

100466725 Seagate Barracuda 11 PCB

DATARECOVERYUNION.COM02 mins

Swap 100466725 Seagate Barracuda 11 PCB(Printed Circuit Boards) to recover your data from damaged HDD due to PCB failure. 100466725 is the board number on this PCB. If your HDD’s PCB has problems, the drive usually cannot boot up or there may be an inaccurate display in the BIOS of the hard drive’s information. Also power may not get to the hard drive and as a result it will not spin up.

PCB Board Details:

Name: ST3500320AS
Board Number: 100466725
Main Controller IC: TTB5501C
Motor Combo IC: 100369972
Manufacturer: Seagate

Note: Hard drive failures are NOT always caused by circuit board failure.

Swap Seagate 100466725 Barracuda 11 PCB will not solve the problem below:

1. The hard drive will power up normally (no ticking noises, errors etc) but will not be recognized by the computer;
2. The hard drive will power up normally and be recognized correctly but will report a size of 0 bytes;
3. The hard drive will power up but report SMART errors on boot;

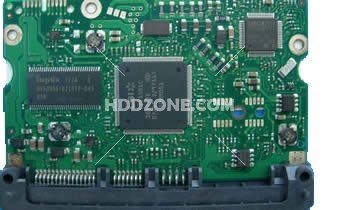

Seagate 100466725 Barracuda 11 PCB Photos:

100466725 Seagate Barracuda 11 PCB

Order Online: Seagate 100466725 Barracuda 11 PCB

Read More

Seagate Barracuda PCB Swap

DATARECOVERYUNION.COM03 mins

Seagate Barracuda PCB ResourcesSeagate Barracuda PCB is short for seagate barracuda circuit board, sometimes our seagate barracuda hard drives’ failure are caused by PCB Errors. When we want to repair them we need to have a Seagate Barracuda PCB swap(replacement). Here you can find these Seagate Barracuda PCB of Barracuda 7,8,9,10,11 and 12 pcb boards listed bellow:

Before you purchasing seagate barracuda pcb please read:
1.These are just PCB (Printed Circuit Boards), not the whole HDD (Hard Disk Drive);
2.Hard drive failures are NOT always caused by circuit board failure.
3.In most cases, you should exchange the BIOS chip before you swap the drive PCB;

How to exchange seagate barracuda PCB’s BIOS/Main Controller IC?

1. Move the BIOS/the Main Controller IC (the biggest chip on the board) from your original barracuda PCB by using hot-air gun, and then solder it on the replacement board. Some electronics repair shop can do it.

2. Move BIOS is not difficult. You just need do it carefully.

3. Move the Main Controller IC is a complex job which need you have certain technique.

Related Seraches: seagate barracuda pcb, seagate barracuda circuit board, seagate circuit board, seagate pcb, seagate pcb replacement, seagate pcb board, seagate pcb swap, seagate hard drive pcb, seagate hdd pcb

Seagate Barracuda Circuit Boards:

About HDDZone.com

HDDZone.com is the one of the largest second-hand HDD PCBs suppliers, HDDzone always concentrate on supplying the high quality PCB to worldwide HDD repair enthusiasts and data recovery companies. Visit HDDZone.com

Read More
